Rear Seat Backrest - Coupe — 2016 workshop reference 1185

501-10B Rear Seats 2016 Mustang

Removal and Installation Procedure revision date: 03/17/2015

Rear Seat Backrest - Coupe

Removal

1. Remove the rear seat cushion. Refer to: Rear Seat Cushion (501-10B Rear Seats, Removal and Installation).

NOTE: LH seat shown, RH seat similar.

2. Release the fastener attaching the seat backrest to the floor. Torque : 35 lb.ft (47.5 Nm)

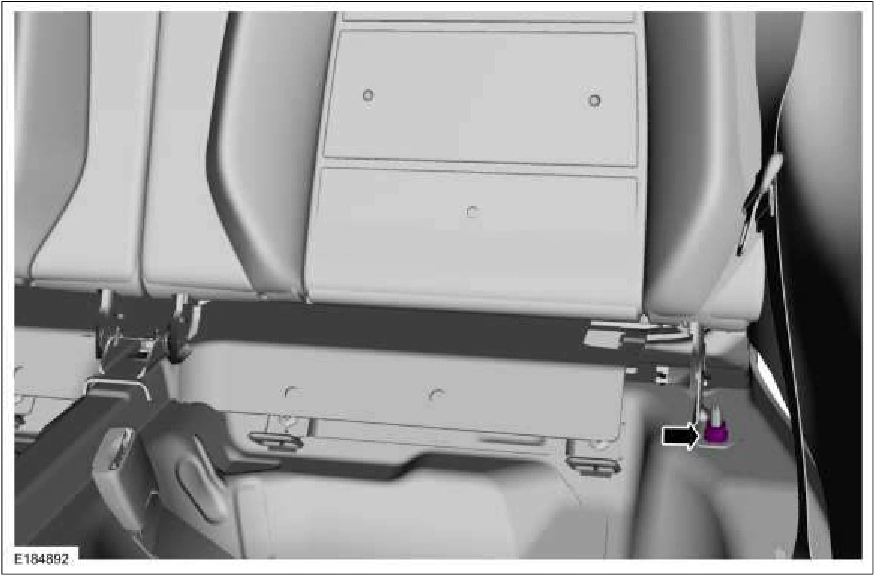

Rear Seat Backrest - Coupe — original illustration 1, reference 1185Original colors & callouts · Select to enlarge

3. Remove the backrest.

1. Release the backrest hinge from the pivot hinge.

2. Move the safety belt aside. Rotate the backrest toward the outboard side of the vehicle.

3. Lift the backrest to release it from the floor stud. Remove the backrest.

Source reference 1185
