Rear Seat Backrest Cover - Convertible

Removal

1. Remove the backrest. Refer to: Rear Seat Backrest - Convertible (501-10B Rear Seats, Removal and Installation).

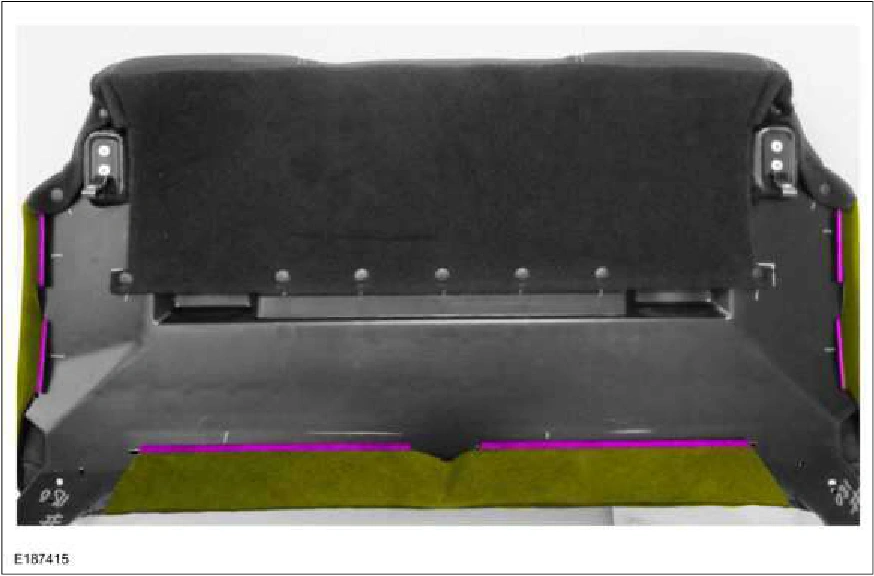

2. Release the backrest cover J-clips from the backrest frame.

Rear Seat Backrest Cover - Convertible — original illustration 1, reference 1187Original colors & callouts · Select to enlarge

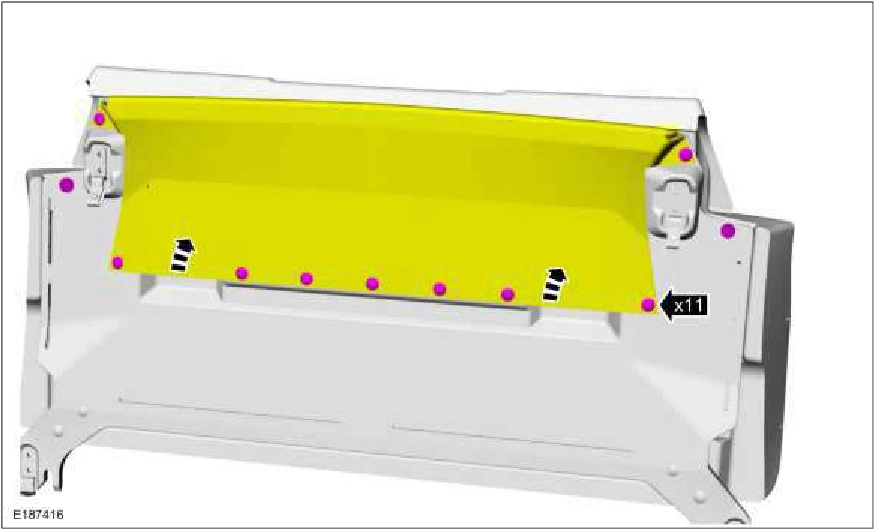

3. Release the backrest cover carpet pin-type retainers from the backrest frame. Fold the carpet forward.

Rear Seat Backrest Cover - Convertible — original illustration 2, reference 1187Original colors & callouts · Select to enlarge
