Rear Seat Backrest Cover - Convertible — 2016 workshop reference 1188

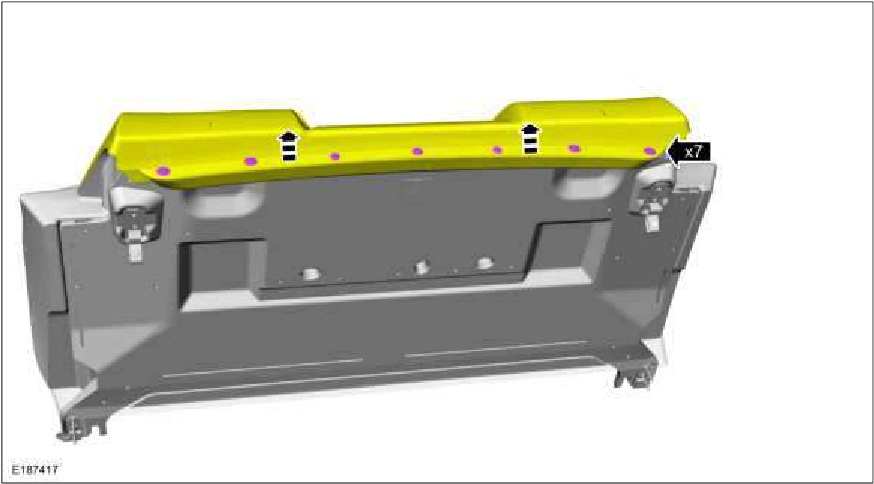

4. Release the backrest cover pin-type retainers from the top of the backrest frame.

Rear Seat Backrest Cover - Convertible — original illustration 1, reference 1188Original colors & callouts · Select to enlarge

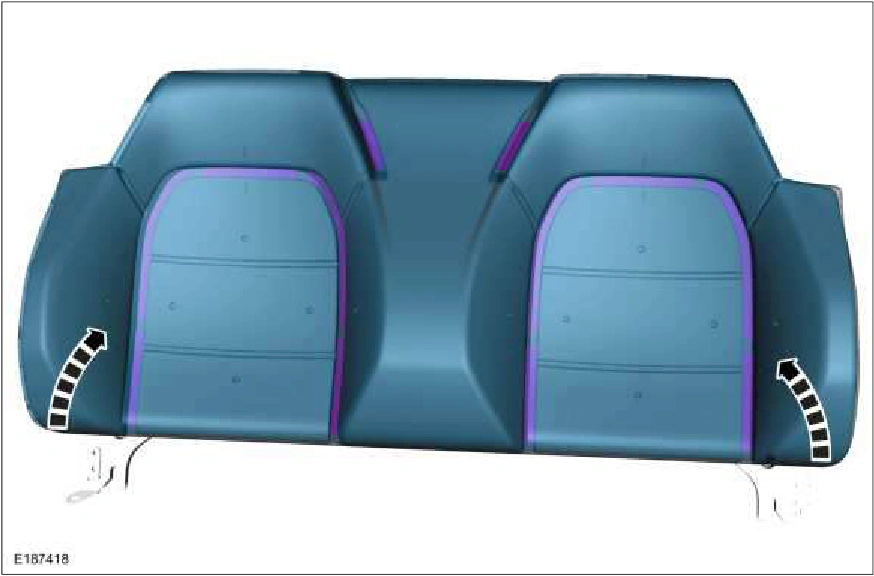

5. NOTICE: Use care when separating the seat backrest cover from the hook-and-loop strips, or the

hook-and-loop strips may be torn from the seat backrest foam pad.

Separate the backrest cover hook-and-loop strips from the backrest foam. Remove the backrest cover.

Rear Seat Backrest Cover - Convertible — original illustration 2, reference 1188Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.
