Rear Seat Backrest Cover - Coupe

Removal

1. Remove the rear seat backrest. Refer to: Rear Seat Backrest - Coupe (501-10B Rear Seats, Removal and Installation).

NOTE: LH seat shown, RH seat similar.

2. Release the backrest lower J-clip.

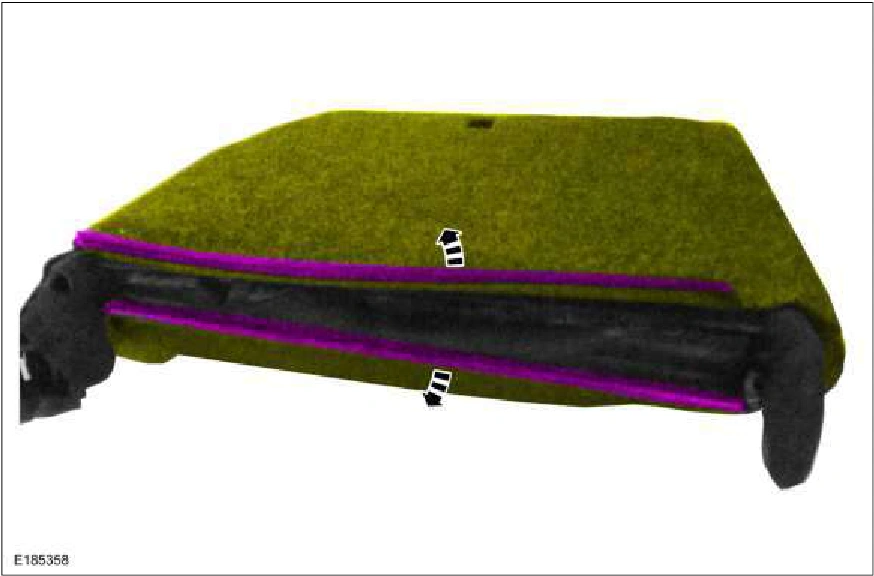

Rear Seat Backrest Cover - Coupe — original illustration 1, reference 1189Original colors & callouts · Select to enlarge

3. NOTICE: Use care when separating the seat backrest cover from the hook-and-loop strips, or the

hook-and-loop strips may be torn from the seat backrest foam pad.

Separate the backrest cover hook-and-loop strips from the backrest foam. Position the backrest latch strap through the backrest cover. Remove the backrest cover.
