501-10B Rear Seats 2016 Mustang

Removal and Installation Procedure revision date: 03/17/2015

Rear Seat Backrest Latch

Special Tool(s) / General Equipment

Electric Drill

Removal

NOTE: LH seat shown, RH seat similar.

1. Remove the rear seat backrest cover. Refer to: Rear Seat Backrest Cover - Coupe (501-10B Rear Seats, Removal and Installation).

2. Release the latch fasteners from the rear of the backrest frame.

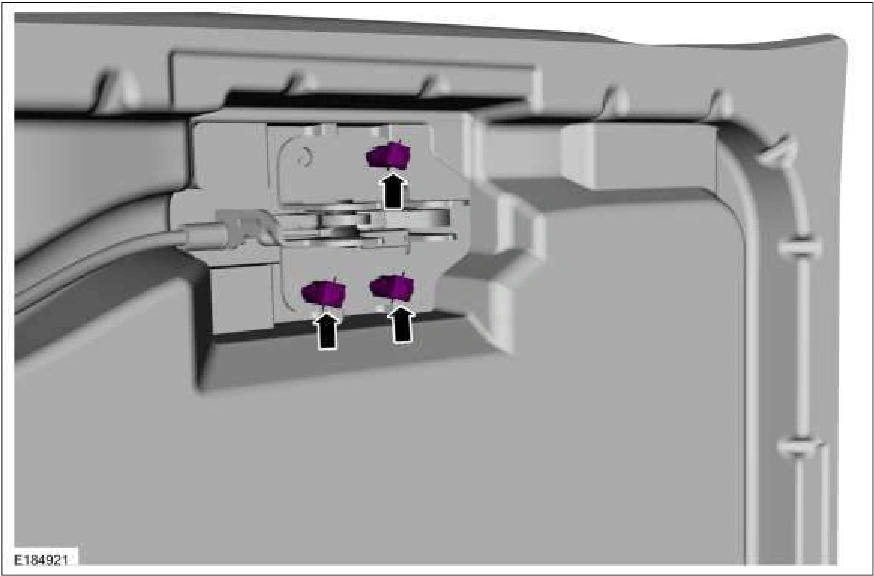

Rear Seat Backrest Latch — original illustration 1, reference 1191Original colors & callouts · Select to enlarge

3. Using an electric drill, remove the rivet. Remove the seat latch assembly. Use the General Equipment: Electric Drill

Source reference 1191
