2016 workshop · Body & Paint

Rear Seat Cushion

501-10B Rear Seats

2016 MustangReference 1,194 / 6,619HTML edition
← Chapter contentsProcedure contents

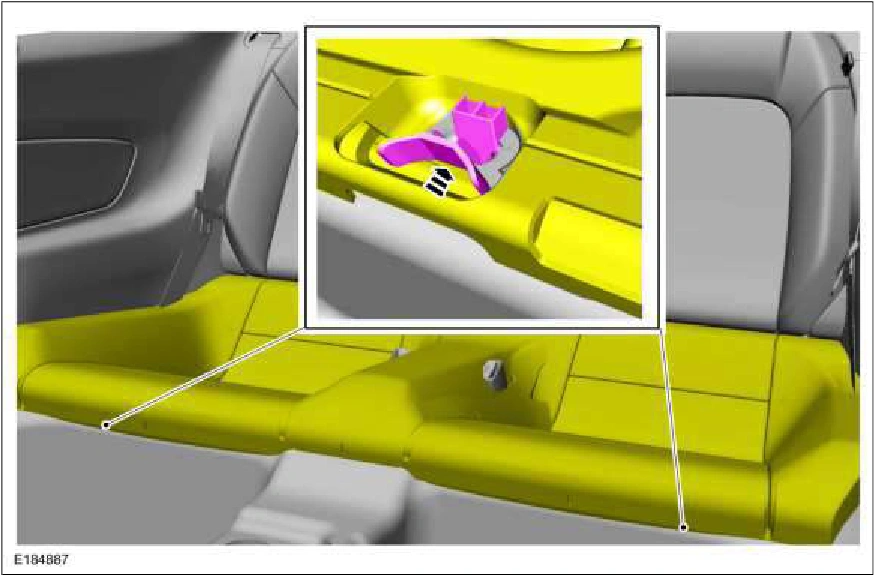

Rear Seat Cushion — original illustration 1, reference 1194Original colors & callouts · Select to enlarge

3. Lift and release the seat cushion. Remove the seat cushion.

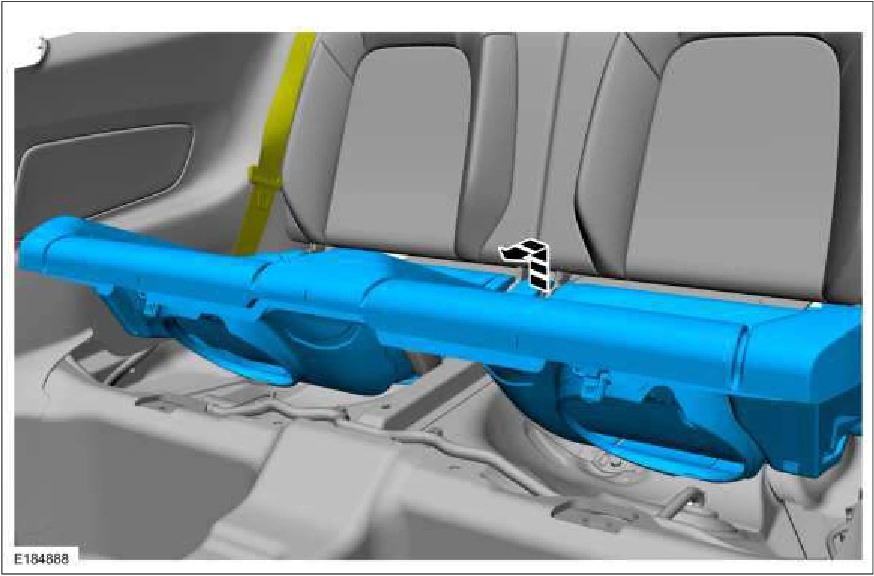

Rear Seat Cushion — original illustration 2, reference 1194Original colors & callouts · Select to enlarge

Installation

1. NOTE: During installation make sure the seatbelt webbing is not twisted and the seatbelts and buckles are accessible to the occupant.

To install, reverse the removal procedure.

Copyright © 2016 Ford Motor Company

Source reference 1194
