501-10B Rear Seats 2016 Mustang

Removal and Installation Procedure revision date: 03/17/2015

Rear Seat Cushion Cover

Removal

1. Remove the rear seat cushion. Refer to: Rear Seat Cushion (501-10B Rear Seats, Removal and Installation).

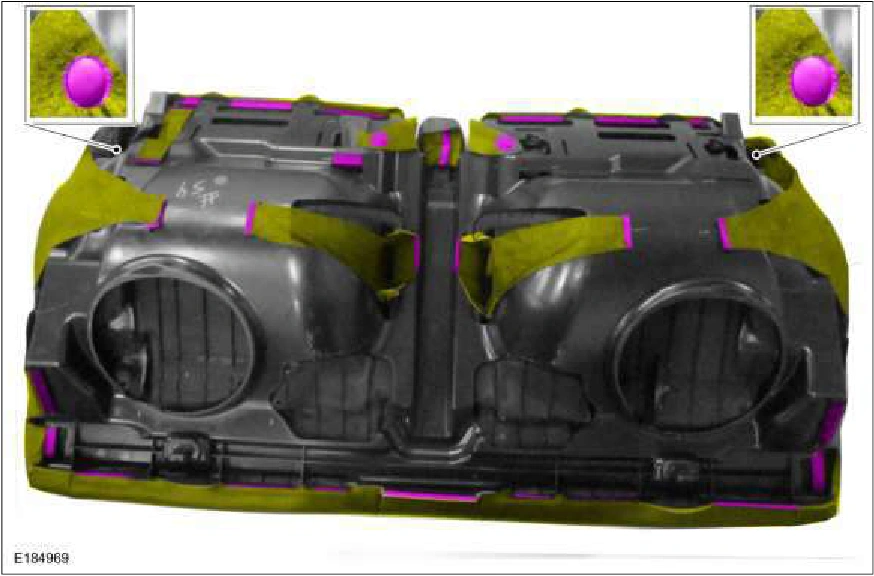

2. Release the cushion cover J-clips and pin-type retainers from bottom of the seat cushion frame. Position the J-clip attaching straps through the openings in the seat cushion foam.

Rear Seat Cushion Cover — original illustration 1, reference 1195Original colors & callouts · Select to enlarge

3. NOTICE: Use care when separating the seat cushion cover from the hook-and-loop strips, or the

hook-and-loop strips may be torn from the seat cushion foam pad.

Separate the seat cushion cover from the hook-and-loop strips. Remove the cushion cover.
