501-10B Rear Seats 2016 Mustang

Removal and Installation Procedure revision date: 10/16/2015

Rear Seat Cushion

Removal

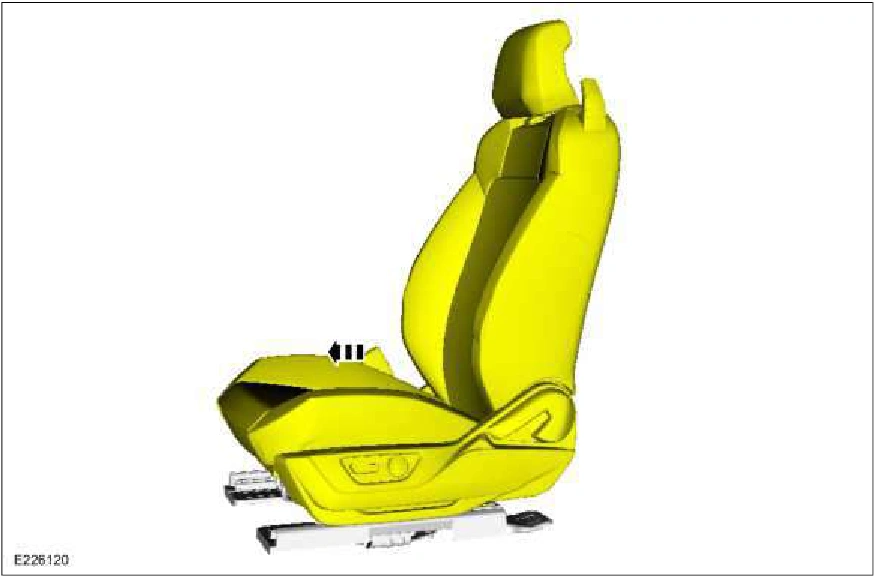

1. On both sides. Move the front seat to the full forward position.

Rear Seat Cushion — original illustration 1, reference 1193Original colors & callouts · Select to enlarge

2. NOTICE: The seat cushion tabs must be pressed in to release them from the floor. If the locking

tabs are not pressed in, it may result in damage to the tabs.

Located at the front of the seat cushion, press in on the locking tabs to release the seat cushion from the floor.
