Door Window Glass Adjustment - Coupe

Adjustment

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

All adjustments

1. NOTE: The front door must be aligned correctly before adjusting the front door window glass.

Check the front door alignment. Refer to: Front Door Alignment (501-03 Body Closures, General Procedures).

2. Open the door.

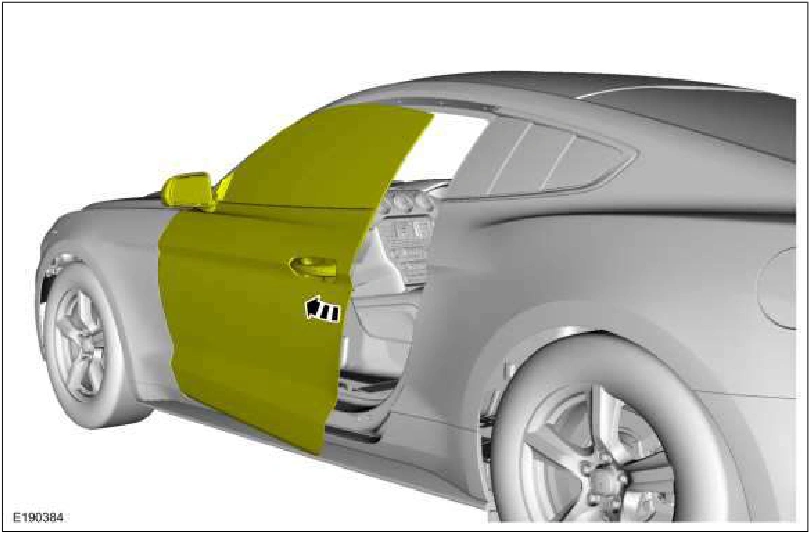

Door Window Glass Adjustment - Coupe — original illustration 1, reference 1245Original colors & callouts · Select to enlarge

3. Remove the front door speaker. Refer to: Front Door Speaker RH (415-00B Information and Entertainment System - General Information - Vehicles With: Touchscreen Display, Removal and Installation). Refer to: Front Door Speaker LH (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).

4. Remove the front door lower watershield.
