2016 workshop · Body & Paint

Fixed Glass

501-11 Glass, Frames and Mechanisms

2016 MustangReference 1,243 / 6,619HTML edition
← Chapter contentsProcedure contents

2. If the clearcoat layer was damaged on the pinch weld but not extending into bare metal, apply body primer to those areas only. Material : Body Primer / BETASEAL™ 43538

7. Clean the inside of the new fixed glass with glass cleaner. Material : Motorcraft® Ultra-Clear Spray Glass Cleaner (U.S.) / ZC-23 (U.S.) (ESR-M14P5-A)

Fixed Glass — original illustration 1, reference 1243Original colors & callouts · Select to enlarge

8.

Fixed Glass — original illustration 2, reference 1243Original colors & callouts · Select to enlarge

Apply glass primer according to the manufacturer's instructions to the new fixed glass. Allow at least 6 minutes to dry. Material : Dow Urethane One Step Glass Primer / Betaprime™ 5500/5500A/5500SA Material : Sika Urethane Metal and Glass Primer / Sika 206 G+P

Fixed Glass — original illustration 3, reference 1243Original colors & callouts · Select to enlarge

9.

Fixed Glass — original illustration 4, reference 1243Original colors & callouts · Select to enlarge

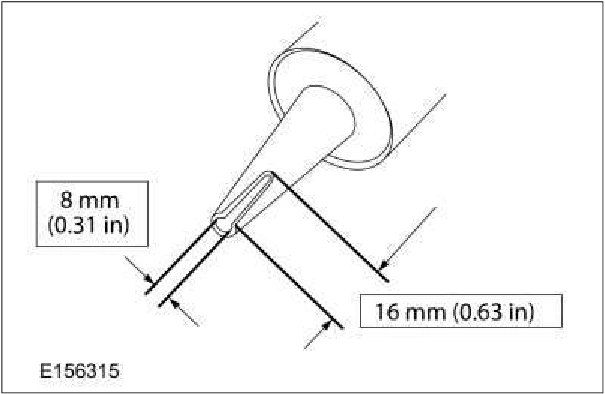

Cut the urethane adhesive applicator tip to specification. Material : Betaseal™ Express Dow Urethane Adhesive Material : Sika Tack ASAP Urethane Adhesive

Fixed Glass — original illustration 5, reference 1243Original colors & callouts · Select to enlarge
Fixed Glass — original illustration 6, reference 1243Original colors & callouts · Select to enlarge

10.

Fixed Glass — original illustration 7, reference 1243Original colors & callouts · Select to enlarge

NOTICE: Make sure the urethane bead is uniform to prevent air and water leaks.

NOTE: The fixed glass must be installed within 10 minutes of applying the urethane adhesive.

NOTE: Use a power caulk gun that applies the urethane adhesive with less effort and a continuous bead.

Apply a urethane adhesive bead.

1. Start and end at the original overlap points to prevent air and water leaks.

Source reference 1243
