Cylinder Block Core Plug Replacement — 2016 workshop reference 126

installer. Remove the excess sealant after installation. Material : Threadlock 262 / TA-26 (WSK-M2G351-A6)

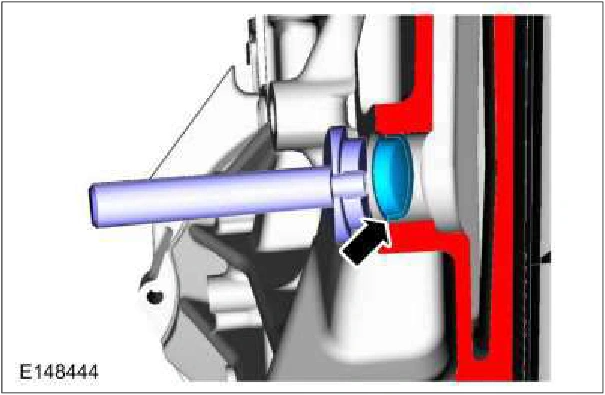

Cylinder Block Core Plug Replacement — original illustration 1, reference 126Original colors & callouts · Select to enlarge

Expansion-type

4. NOTE: Do not contact the crown when installing an expansion-type core plug. This could expand the plug before seating and result in leakage.

Coat the expansion-type core plug and bore lightly with sealant and install the core plug using a freeze plug installer. Remove the excess sealant after installation. Material : Threadlock 262 / TA-26 (WSK-M2G351-A6)

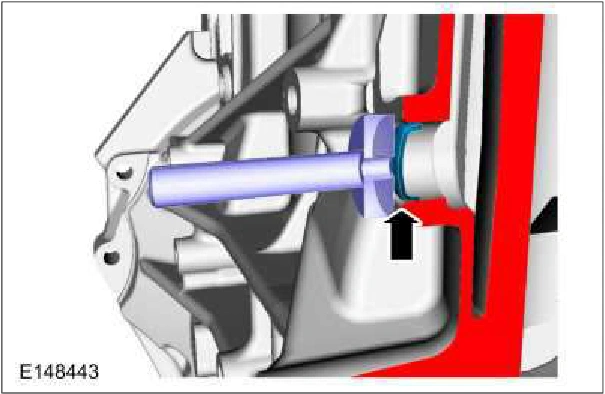

Cylinder Block Core Plug Replacement — original illustration 2, reference 126Original colors & callouts · Select to enlarge

Source reference 126
