Cylinder Block Distortion

303-00 Engine System - General Information 2016 Mustang

General Procedures Procedure revision date: 08/28/2012

Special Tool(s) / General Equipment

Feeler Gauge

Check

NOTE: Refer to the appropriate Section 303-01 for the specification.

1. NOTE: Use a Straightedge that is calibrated by the manufacturer to be flat within 0.005 mm (0.0002 in) per running foot of length, such as Snap-On® GA438A or equivalent. For example, if the Straightedge is 61 cm (24 in) long, the machined edge must be flat within 0.010 mm (0.0004 in) from end to end.

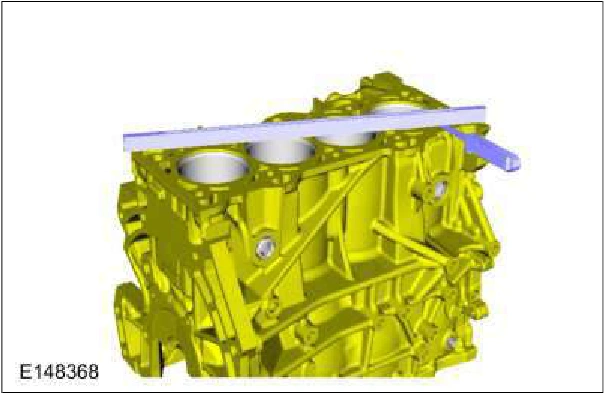

Use a Straightedge and a Feeler Gauge Set to inspect the cylinder block for flatness. Use the General Equipment: Feeler Gauge

Cylinder Block Distortion — original illustration 1, reference 127Original colors & callouts · Select to enlarge

Source reference 127
