Door Window Glass Adjustment - Convertible

501-11 Glass, Frames and Mechanisms

2016 MustangReference 1,263 / 6,619HTML edition

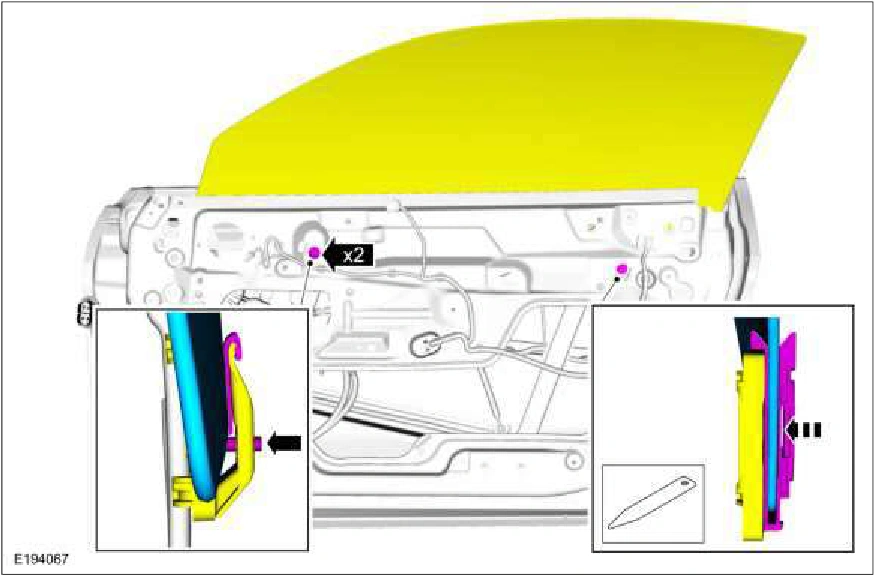

11. Loosen both glass clamps, adjust the front door window glass as necessary and tighten the glass clamps. Torque : 80 lb.in (9 Nm)

Door Window Glass Adjustment - Convertible — original illustration 1, reference 1263Original colors & callouts · Select to enlarge

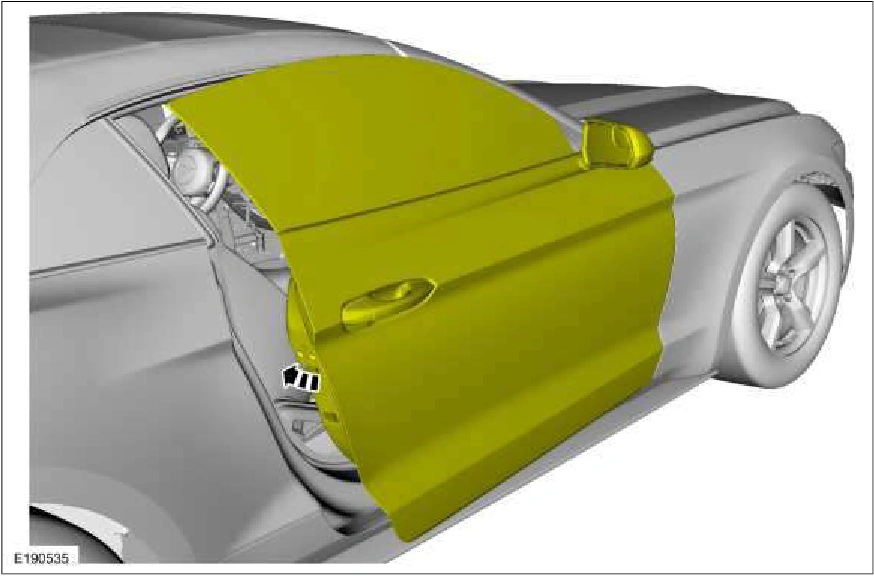

12. Close the door.

Door Window Glass Adjustment - Convertible — original illustration 2, reference 1263Original colors & callouts · Select to enlarge

13. Check the door glass up/down, fore/aft to body dimensions.
