2016 workshop · Body & Paint

Door Window Glass Adjustment - Convertible

501-11 Glass, Frames and Mechanisms

2016 MustangReference 1,265 / 6,619HTML edition

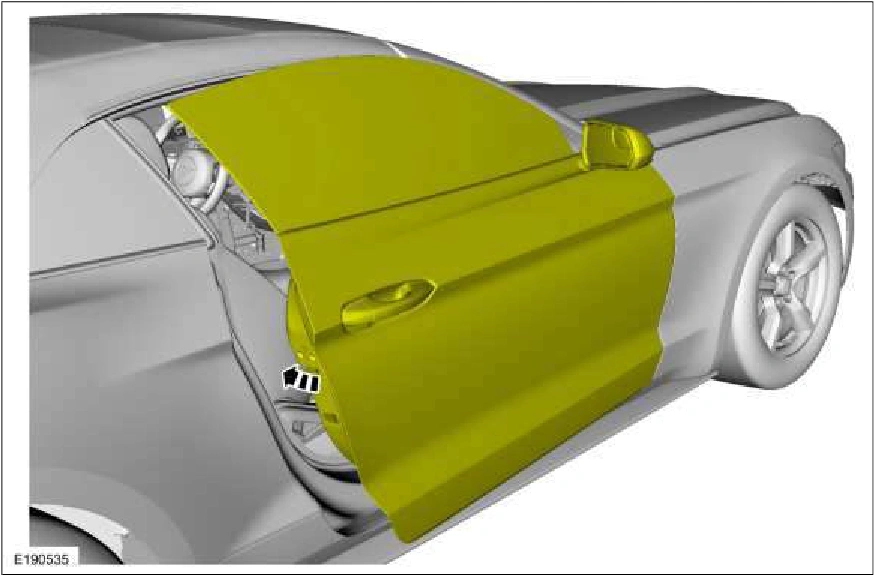

Door Window Glass Adjustment - Convertible — original illustration 1, reference 1265Original colors & callouts · Select to enlarge

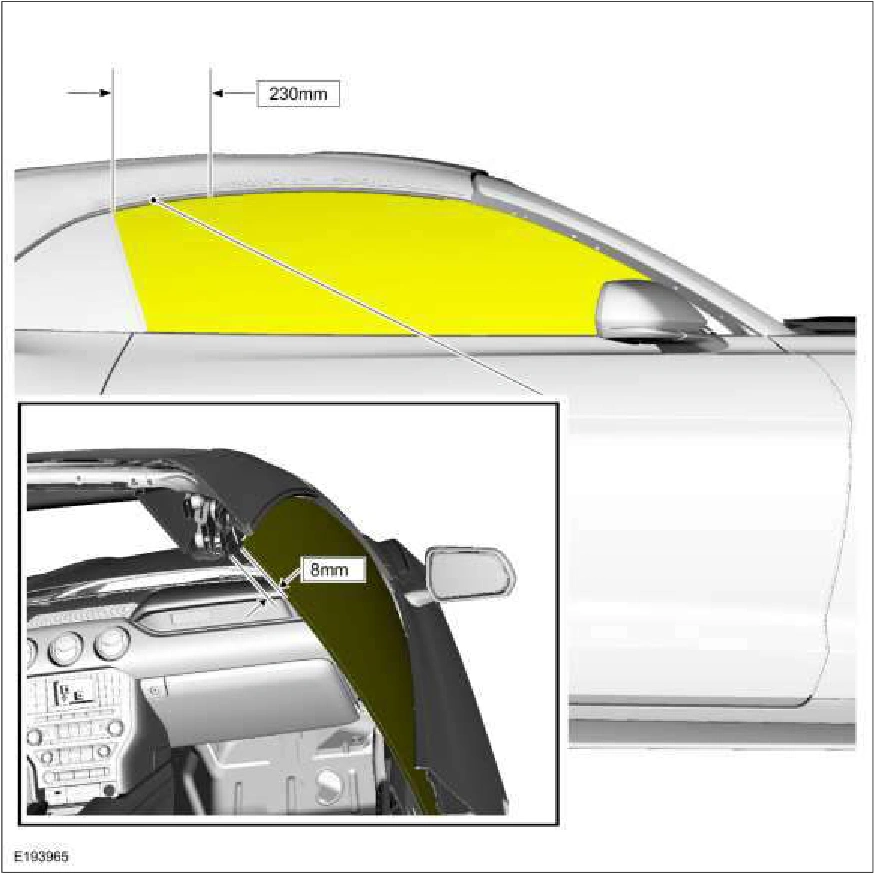

15. Measure the gap between the top of the front door glass and the body at the specified locations.

Door Window Glass Adjustment - Convertible — original illustration 2, reference 1265Original colors & callouts · Select to enlarge

Source reference 1265
