Door Window Glass Adjustment - Convertible

501-11 Glass, Frames and Mechanisms

2016 MustangReference 1,268 / 6,619HTML edition

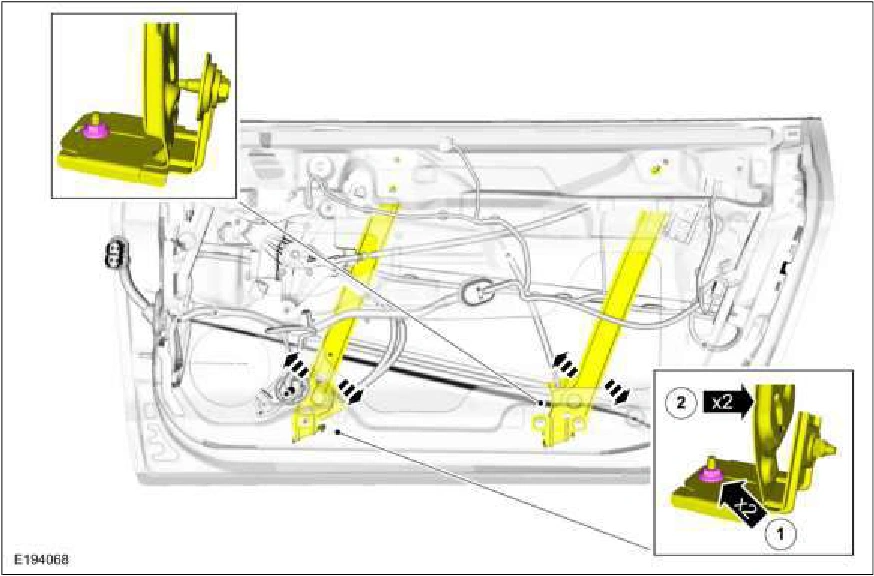

Door Window Glass Adjustment - Convertible — original illustration 1, reference 1268Original colors & callouts · Select to enlarge

19. Close the door.

Door Window Glass Adjustment - Convertible — original illustration 2, reference 1268Original colors & callouts · Select to enlarge

20. Check the door glass in/out to body dimensions and adjust the door glass runs and regulator rails relative to the door as necessary.

Source reference 1268
