Rear Quarter Window Glass Adjustment - Convertible — 2016 workshop reference 1275

501-11 Glass, Frames and Mechanisms 2016 Mustang

General Procedures Procedure revision date: 09/5/2014

Rear Quarter Window Glass Adjustment - Convertible

Adjustment

All adjustments

NOTE: RH side shown, LH side similar.

NOTE: Removal steps in this procedure may contain installation details.

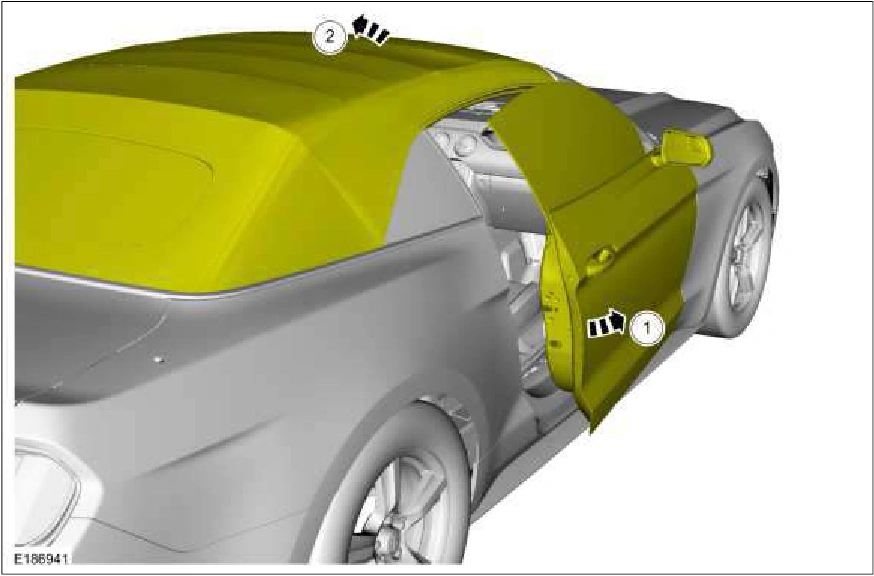

1. Open the door and lower the convertible top.

1. Open the door.

2. Lower the convertible top.

Rear Quarter Window Glass Adjustment - Convertible — original illustration 1, reference 1275Original colors & callouts · Select to enlarge

2. If equipped, remove the RTM. Refer to: Radio Transceiver Module (RTM) (419-10 Multifunction Electronic Modules, Removal and Installation).

3. Remove the rear quarter panel speaker. Refer to: Rear Quarter Panel Speaker (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).

4. Remove the rear quarter panel speaker bracket.

1. Remove the nuts. Torque : 71 lb.in (8 Nm)

2. Remove the stud bolt. Torque : 97 lb.in (11 Nm)

3. Detach the retainers and position aside the wiring harness.

4. Remove the rear quarter panel speaker bracket.
