Rear Quarter Window Glass Adjustment - Convertible — 2016 workshop reference 1276

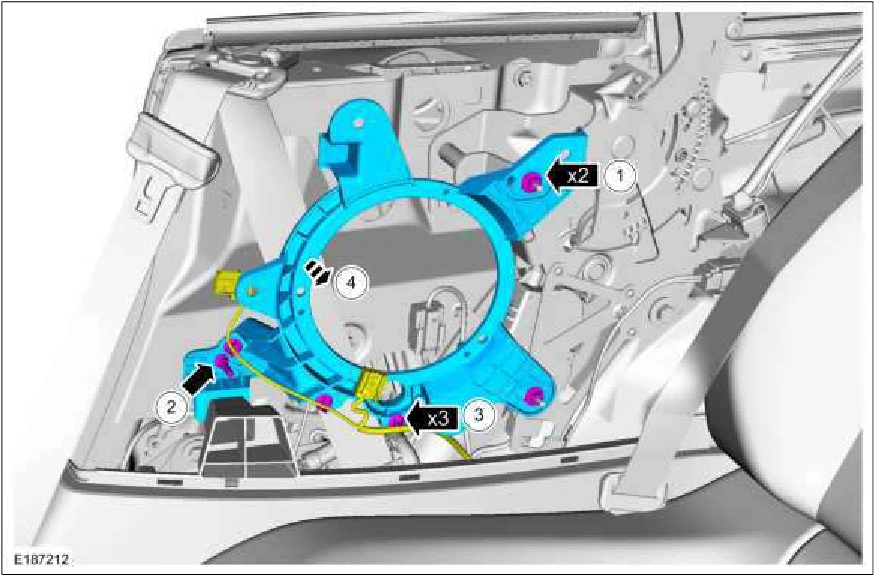

Rear Quarter Window Glass Adjustment - Convertible — original illustration 1, reference 1276Original colors & callouts · Select to enlarge

5. Remove the watershield.

1. Disconnect the rear quarter window regulator motor electrical connector and position aside the wiring harness.

2. Detach the retainer and position aside the watershield.

3. Detach the wiring harness retainer and remove the watershield.

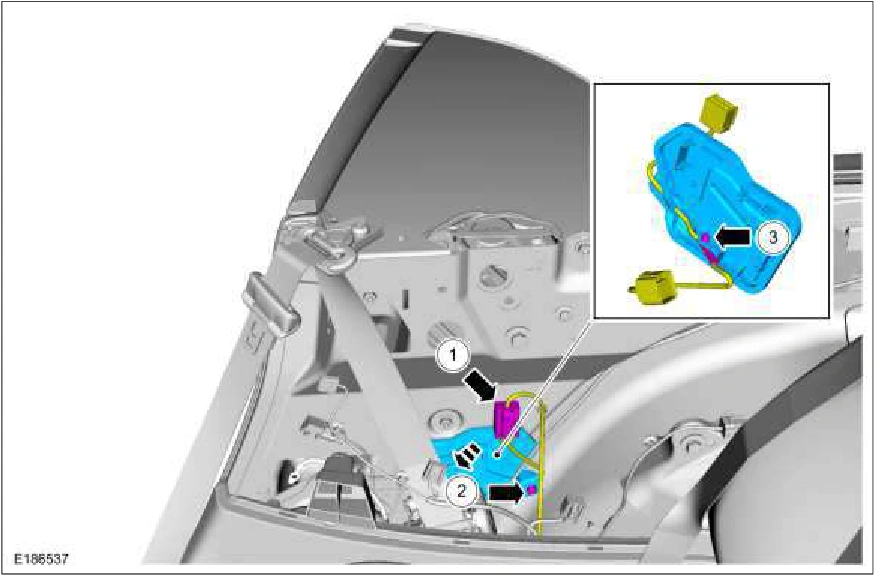

Rear Quarter Window Glass Adjustment - Convertible — original illustration 2, reference 1276Original colors & callouts · Select to enlarge

6. Close the door.

Source reference 1276
