Rear Quarter Window Glass Adjustment - Convertible

501-11 Glass, Frames and Mechanisms

2016 MustangReference 1,281 / 6,619HTML edition

← Chapter contents Procedure contents

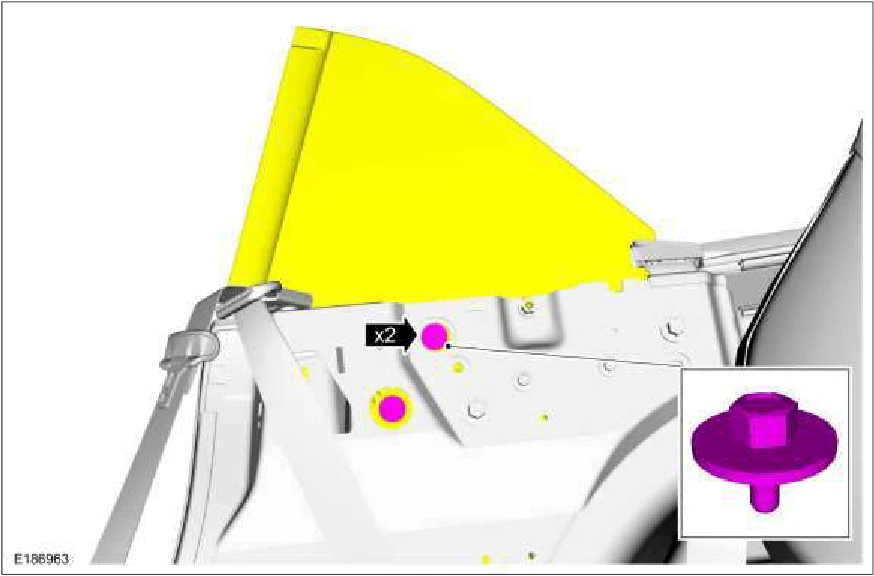

13. Tighten the rear quarter window glass bolts. Torque : 97 lb.in (11 Nm)

Rear Quarter Window Glass Adjustment - Convertible — original illustration 1, reference 1281Original colors & callouts · Select to enlarge

In/Out adjustment

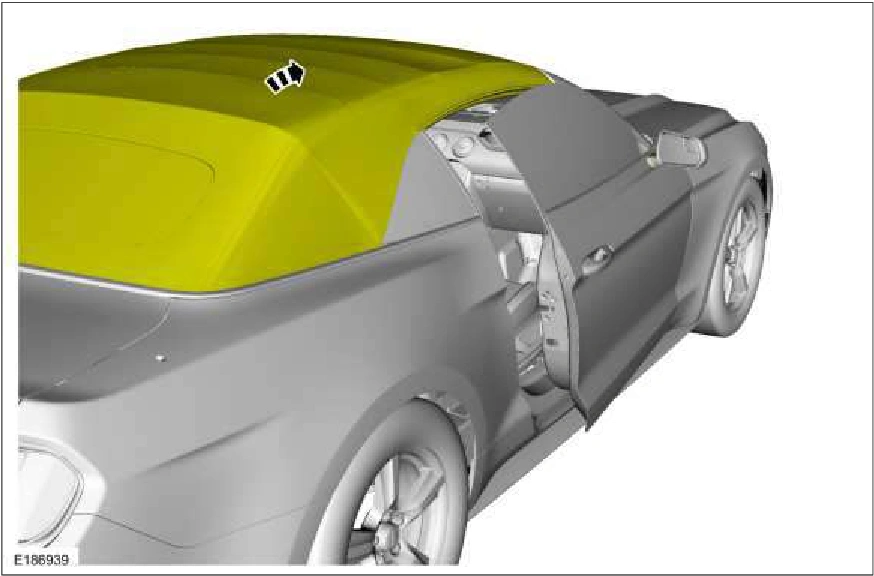

14. Close the convertible top.

Rear Quarter Window Glass Adjustment - Convertible — original illustration 2, reference 1281Original colors & callouts · Select to enlarge

15. Close the door.
