2016 workshop · Body & Paint

Rear Quarter Window Glass - Convertible

501-11 Glass, Frames and Mechanisms

2016 MustangReference 1,291 / 6,619HTML edition
← Chapter contentsProcedure contents

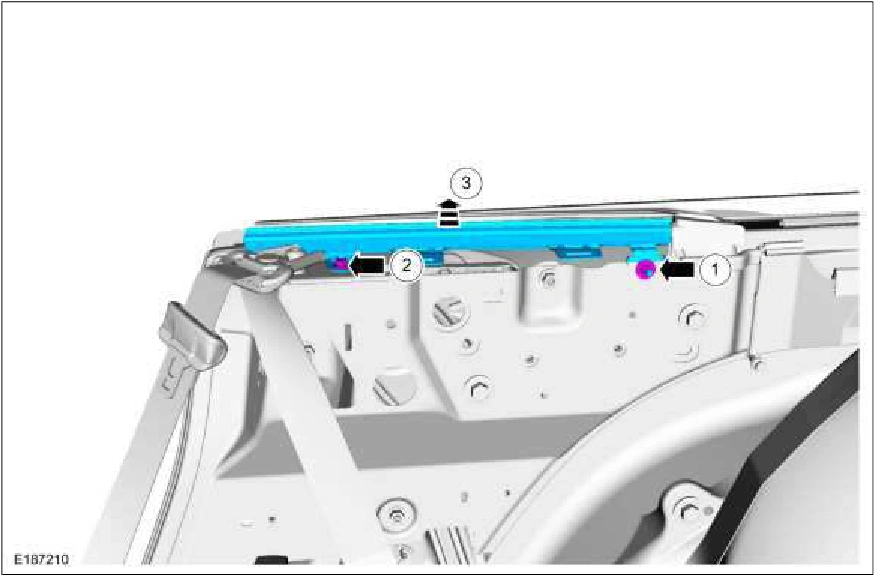

Rear Quarter Window Glass - Convertible — original illustration 1, reference 1291Original colors & callouts · Select to enlarge

5. Position aside the rear quarter window glass exterior moulding.

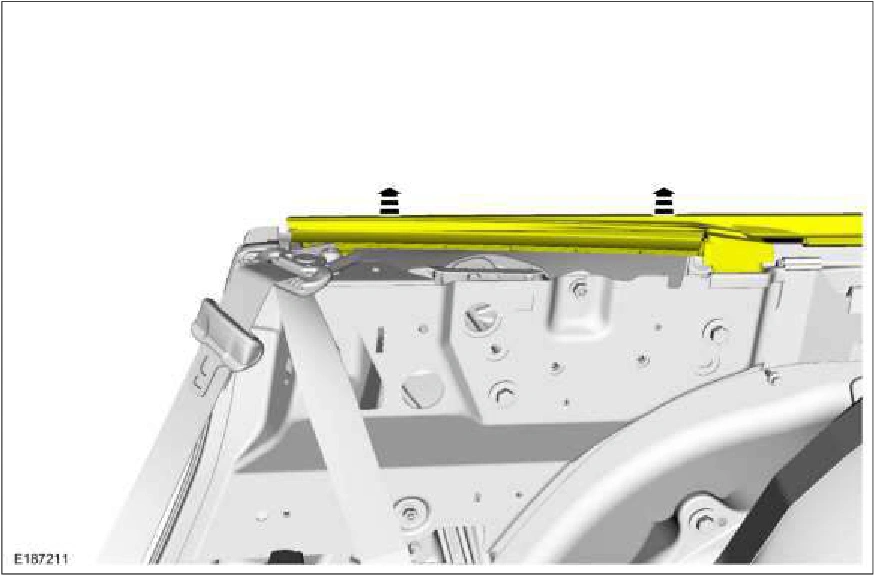

Rear Quarter Window Glass - Convertible — original illustration 2, reference 1291Original colors & callouts · Select to enlarge

6. NOTE: If the rear quarter window glass is not in full up position, the rear quarter window glass and rear quarter window regulator cannot be separated.

NOTE: If the rear quarter window glass is inoperative the rear quarter window regulator motor will have to be removed to allow movement of the glass to gain access to the bolts.

Raise the rear quarter window glass to full up position.

Source reference 1291
