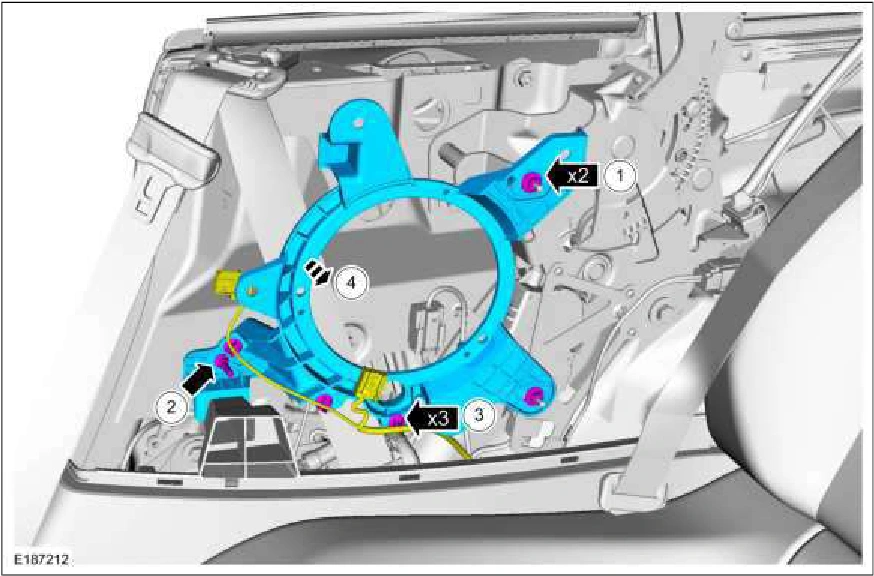

7. Remove the rear quarter panel speaker bracket.

1. Remove the nuts. Torque : 71 lb.in (8 Nm)

2. Remove the stud bolt. Torque : 97 lb.in (11 Nm)

3. Detach the retainer and position aside the wiring harness.

4. Remove the rear quarter panel speaker bracket.

Rear Quarter Window Glass - Convertible — original illustration 2, reference 1292Original colors & callouts · Select to enlarge

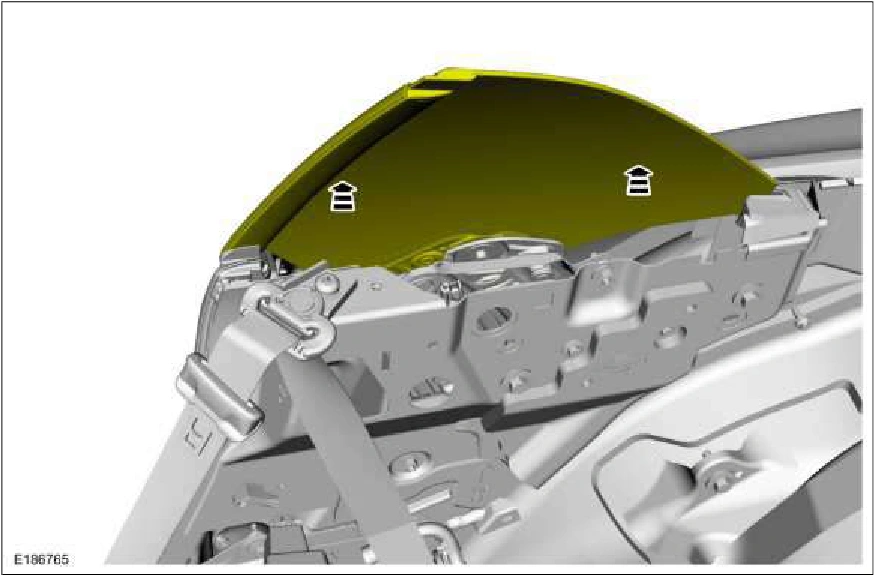

8. Remove the watershield.

1. Disconnect the rear quarter window regulator motor electrical connector and position aside the wiring harness.

2. Detach the retainer and position aside the watershield.
