Rear Quarter Window Regulator - Convertible — 2016 workshop reference 1295

501-11 Glass, Frames and Mechanisms 2016 Mustang

Removal and Installation Procedure revision date: 03/2/2015

Rear Quarter Window Regulator - Convertible

Removal

NOTE: RH side shown, LH side similar.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

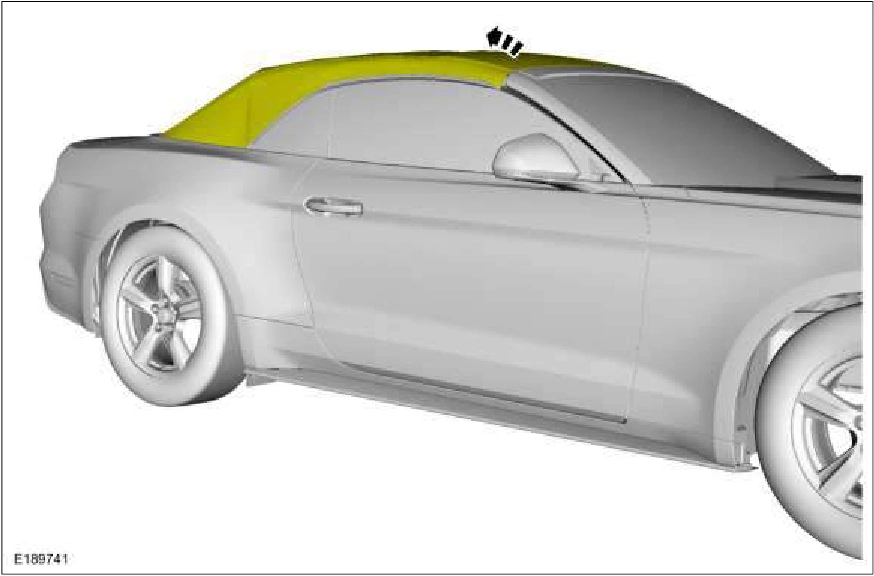

1. Lower the convertible top.

Rear Quarter Window Regulator - Convertible — original illustration 1, reference 1295Original colors & callouts · Select to enlarge

Right hand side

2. Remove RTM. Refer to: Radio Transceiver Module (RTM) (419-10 Multifunction Electronic Modules, Removal and Installation).

All vehicles

NOTE: The convertible top assembly removed for clarity.

3. Remove the rear quarter panel speaker. Refer to: Rear Quarter Panel Speaker (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).

4. Remove the rear quarter window glass interior belt moulding.

1. Remove the nut.

2. Remove the bolt.

3. Remove the rear quarter window glass interior belt moulding.
