Piston Diameter

303-00 Engine System - General Information 2016 Mustang

General Procedures Procedure revision date: 08/28/2012

Check

NOTE: Refer to the appropriate Section 303-01 for the specification.

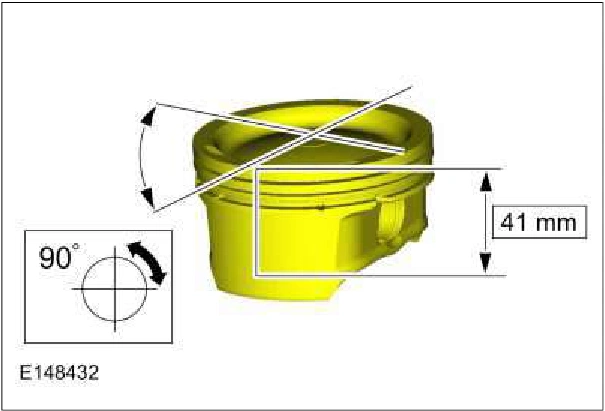

1. Measure the piston diameter 90 degrees from the piston pin and 41 mm (1.61 in) down from the top of the piston at the point indicated.

Piston Diameter — original illustration 1, reference 131Original colors & callouts · Select to enlarge

Source reference 131
