Piston Selection

303-00 Engine System - General Information 2016 Mustang

General Procedures Procedure revision date: 08/28/2012

Check

NOTE: Refer to the appropriate Section 303-01 for the specifications.

1. NOTE: The cylinder bore must be within the specifications for taper and out-of-round before fitting a piston.

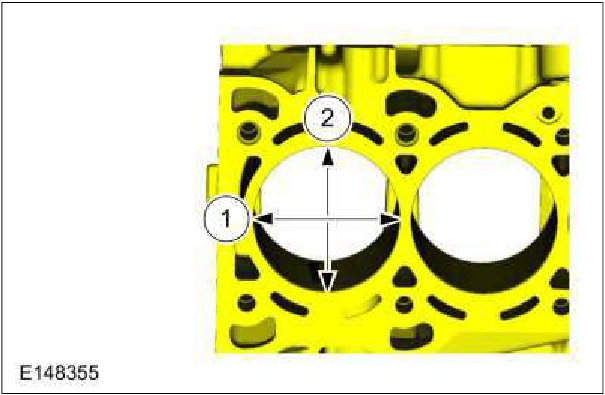

Measure the cylinder bore in 2 directions. Select a piston size based on the cylinder bore.

Piston Selection — original illustration 1, reference 134Original colors & callouts · Select to enlarge

2. NOTE: For precision fit, new pistons are divided into 3 categories within each size range based on their relative position within the range. A paint spot or specific size grade on a new piston indicates the position within the size range.

Choose the piston with the correct paint color or specific size grade.

Source reference 134
