Valve Stem Diameter

303-00 Engine System - General Information 2016 Mustang

General Procedures Procedure revision date: 08/28/2012

Check

NOTE: Refer to the appropriate Section 303-01 for the specification.

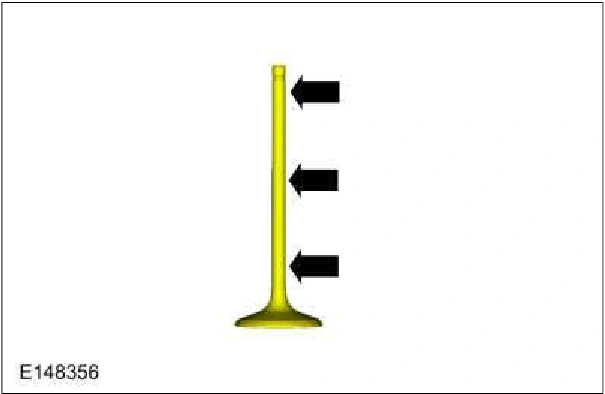

1. Measure the diameter of each intake and exhaust valve stem at the points shown. Verify the diameter is within specification.

Valve Stem Diameter — original illustration 1, reference 137Original colors & callouts · Select to enlarge

Source reference 137
