Valve Guide Inner Diameter

303-00 Engine System - General Information 2016 Mustang

General Procedures Procedure revision date: 08/28/2012

Check

NOTE: Refer to the appropriate Section 303-01 for the specification.

1. NOTE: Valve guides tend to wear in an hourglass pattern. The ball gauge can be inserted into the combustion chamber side of the valve guide, if necessary.

Use a ball gauge to determine the inside diameter of the valve guides in 2 directions at the top, middle and bottom of the valve guide. Measure the ball gauge with a micrometer. If the valve guide is not within specifications, install a new cylinder head assembly.

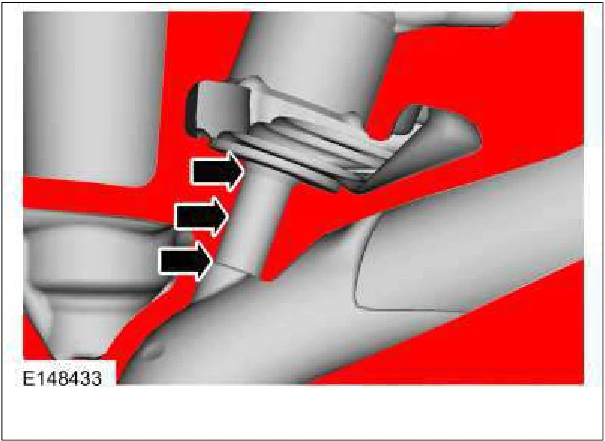

Valve Guide Inner Diameter — original illustration 1, reference 138Original colors & callouts · Select to enlarge
