Engine - Overview — 2016 workshop reference 144

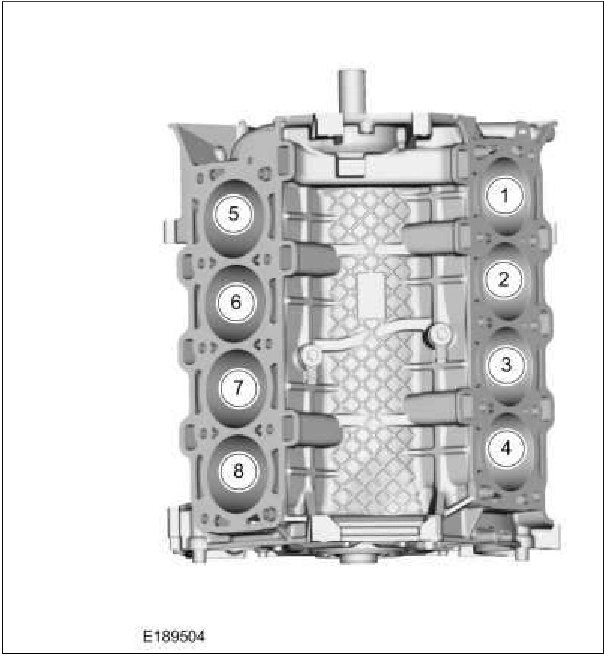

Engine Cylinder Identification

Engine - Overview — original illustration 1, reference 144Original colors & callouts · Select to enlarge

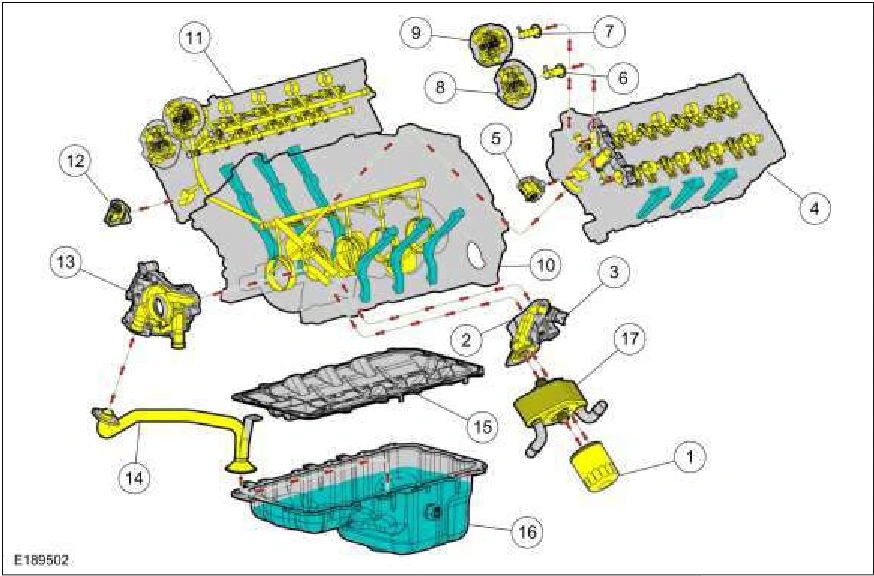

Engine Oil Flow Illustration

Engine - Overview — original illustration 2, reference 144Original colors & callouts · Select to enlarge
Item	Description
1	Oil filter
2	Oil filter adapter
3	EOP switch
4	Cylinder head — LH
