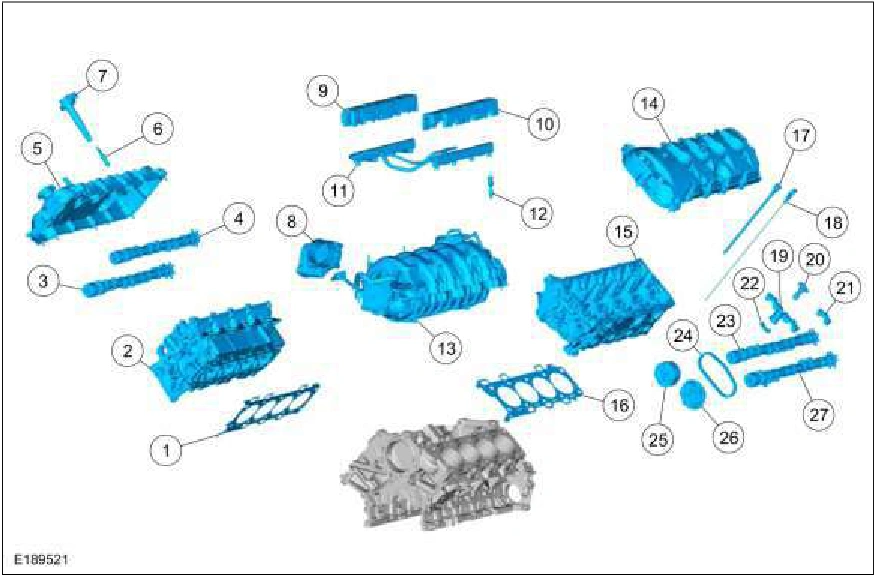

Engine Component View
Engine — Upper Components
Item | Part Number | Description |
|---|---|---|
1 | 6051 | RH cylinder head gasket |
2 | 6049 | RH cylinder head |
3 | 6250 | RH exhaust camshaft |
4 | 6250 | RH intake camshaft |
5 | 6582 | RH valve cover |
6 | 12405 | Spark plug (8 required) |
7 | 12029 | Ignition coil on plug (8 required) |
8 | 9F991 | Throttle body |
9 | 6P013 | RH fuel injector insulator shield |
10 | 6P013 | LH fuel injector insulator shield |
11 | 9F792 | Fuel rail |
12 | 9F593 | Fuel injector (8 required) |
13 | 9424 | Intake manifold |
14 | 6582 | LH valve cover |
15 | 6049 | LH cylinder head |
16 | 6051 | LH cylinder head gasket |
17 | 6754 | Oil indicator tube |
18 | 6750 | Oil indicator |
