Wipers and Washers — 2016 workshop reference 1469

Positive Lead	Measurement / Action	Negative Lead

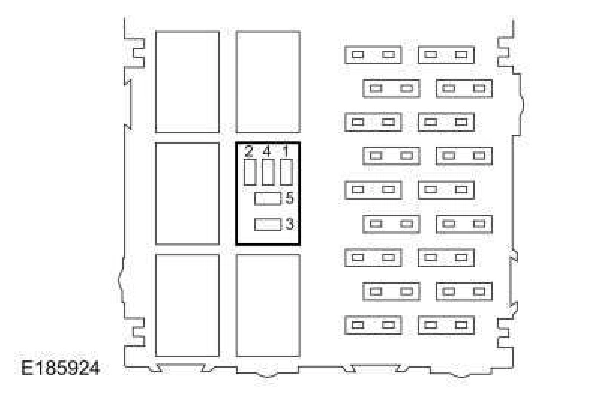

Wiper relay, cavity 1 Wipers and Washers — original illustration 1, reference 1469Original colors & callouts · Select to enlarge		Ground

Positive Lead

Measurement /

Action

Negative Lead

Wiper relay, cavity 1

Wipers and Washers — original illustration 1, reference 1469Original colors & callouts · Select to enlarge

Ground

Is the voltage greater than 11 volts?

Yes		GO to A6
No		VERIFY the BJB fuse 26 (25A) is OK. If OK, REPAIR the circuit. If not OK, REFER to the Wiring Diagrams Manual to identify the possible cause of the circuit short.

A6 CHECK THE WIPER RELAY CONTROL CIRCUIT FOR AN OPEN

Disconnect BCM C2280F. Measure:

Positive Lead	Measurement / Action	Negative Lead

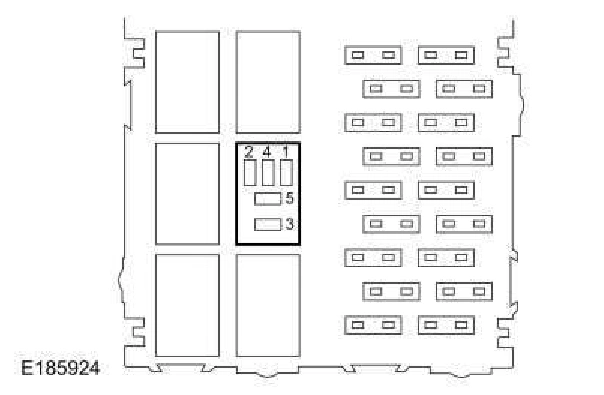

Wiper relay, cavity 2 Wipers and Washers — original illustration 2, reference 1469Original colors & callouts · Select to enlarge		C2280F-24

Positive Lead

Measurement /

Action

Negative Lead

Wiper relay, cavity 2

Wipers and Washers — original illustration 2, reference 1469Original colors & callouts · Select to enlarge

C2280F-24

Is the resistance less than 3 ohms?
