Wipers and Washers — 2016 workshop reference 1471

Ignition OFF. Disconnect Wiper Relay. Measure:

Positive Lead	Measurement / Action	Negative Lead

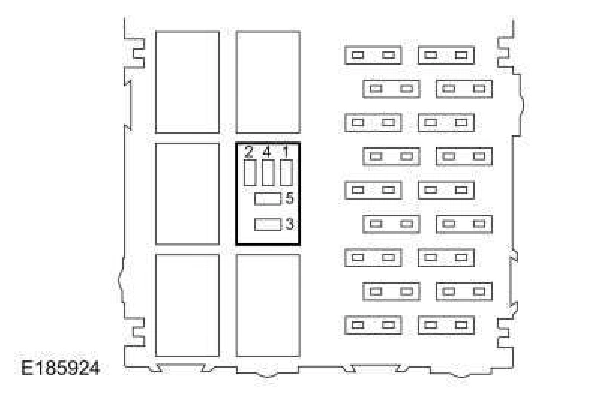

Wiper relay, cavity 3 Wipers and Washers — original illustration 1, reference 1471Original colors & callouts · Select to enlarge		Ground

Positive Lead

Measurement /

Action

Negative Lead

Wiper relay, cavity 3

Wipers and Washers — original illustration 1, reference 1471Original colors & callouts · Select to enlarge

Ground

Is the voltage greater than 11 volts?

Yes	GO to A10
No	REPAIR the circuit.

A10 CHECK FOR THE WINDSHIELD WIPER MOTOR VOLTAGE SUPPLY CIRCUIT FOR AN OPEN

Measure:

Positive Lead	Measurement / Action	Negative Lead
Wiper relay, cavity 5 Wipers and Washers — original illustration 2, reference 1471Original colors & callouts · Select to enlarge		C1656-8

Positive Lead

Measurement /

Action

Negative Lead

Wiper relay, cavity 5

Wipers and Washers — original illustration 2, reference 1471Original colors & callouts · Select to enlarge

C1656-8
