Camshaft LH — 2016 workshop reference 152

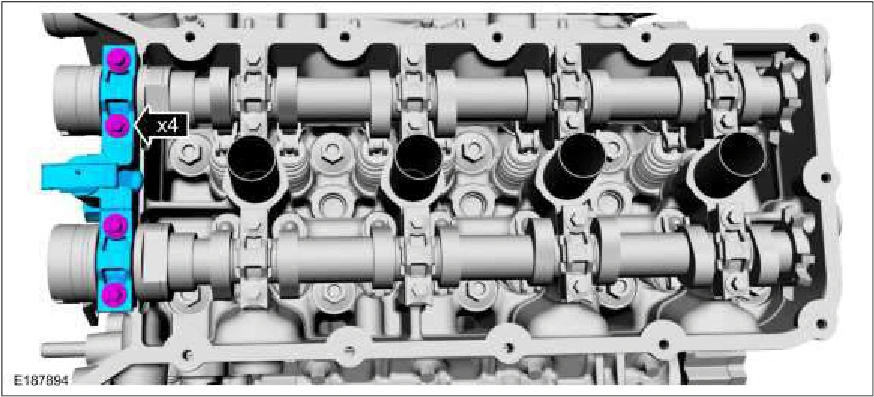

Camshaft LH — original illustration 1, reference 152Original colors & callouts · Select to enlarge

4. Remove the bolts and the camshaft bearing caps.

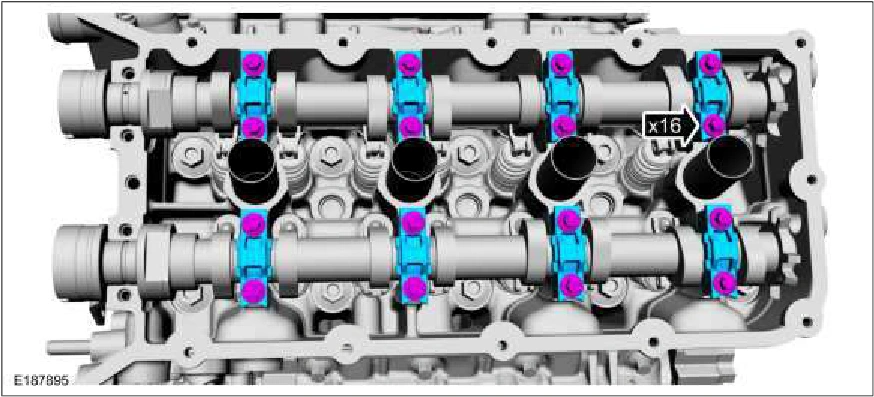

Camshaft LH — original illustration 2, reference 152Original colors & callouts · Select to enlarge

5. Remove the intake and exhaust camshafts.

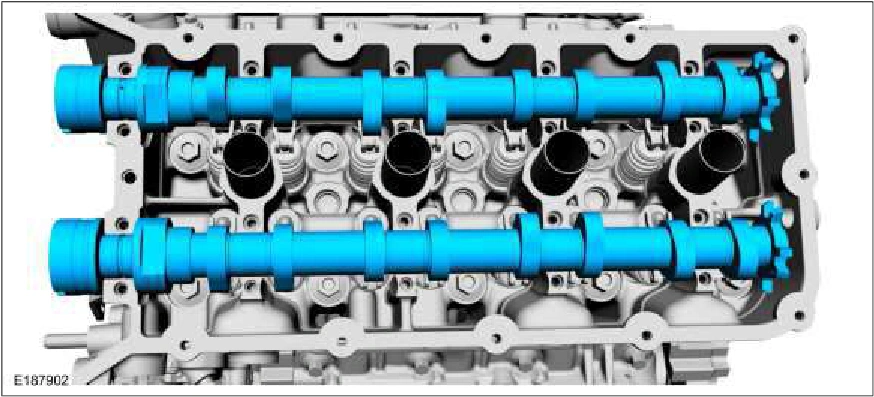

Camshaft LH — original illustration 3, reference 152Original colors & callouts · Select to enlarge

Step 6

1. Remove the camshaft roller follower and hydraulic lash adjuster assemblies.

2. Separate the hydraulic lash adjusters from the spring clips on the camshaft roller followers.

3. Inspect the hydraulic lash adjuster and roller follower for damage. If any damage is found, inspect the camshaft lobes and valves for damage. Replace damaged components as necessary.

Source reference 152
