Camshaft LH
Materials
Name | Specification |
|---|---|
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) XO-5W20-QSP (U.S.) | WSS-M2C945-A |
Removal
NOTICE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
NOTE: If the RH camshafts are being serviced at the same time as the LH camshafts, remove the RH camshafts first. Refer to the procedure in this section.
NOTE: If the components are to be reinstalled, they must be installed in their original locations.
1. Remove the LH VCT units. Refer to: Variable Camshaft Timing (VCT) Unit (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).

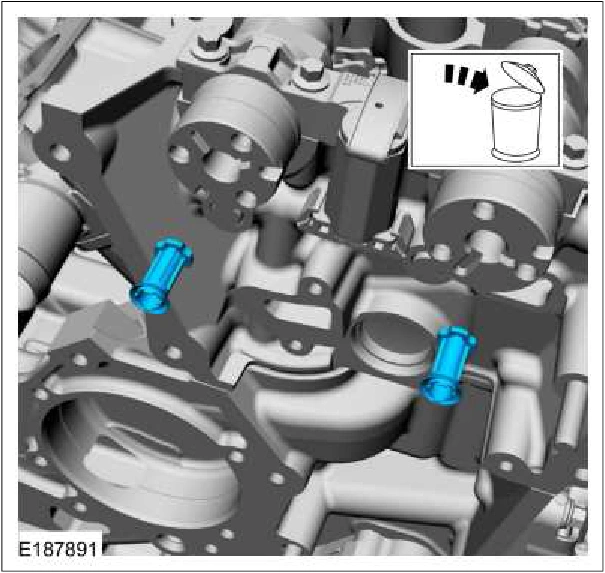

2. Remove and discard the VCT system oil filters.
3. NOTICE: The front camshaft bearing mega cap must be removed first and then the remaining
camshaft bearing caps. Failure to follow this direction may result in damage to the engine.
Remove the bolts and the front camshaft bearing mega cap.
