Convertible Top Trough Assembly — 2016 workshop reference 1641

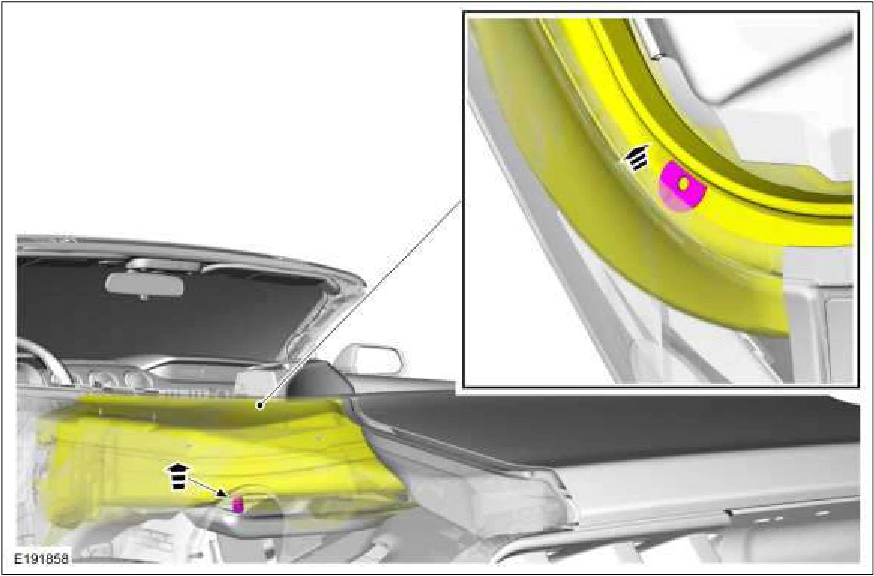

Convertible Top Trough Assembly — original illustration 1, reference 1641Original colors & callouts · Select to enlarge

4. NOTICE: Make sure the body of the vehicle is fully covered with fender blankets or equivalent or

damage to the finish may result.

Remove the trough assembly from the vehicle.

1. NOTE: Sub steps 1, 2 and 3 should be performed together as a single step.

Pull the RH side of the convertible top trough assembly inward for clearance of the body side panels.

2. Roll the RH side of the convertible top trough assembly forward and slightly down for clearance of the rear body panels.

3. Lift the RH rear of the convertible top trough assembly above the body panels.

4. Remove the convertible top trough assembly toward the RH side of the vehicle.

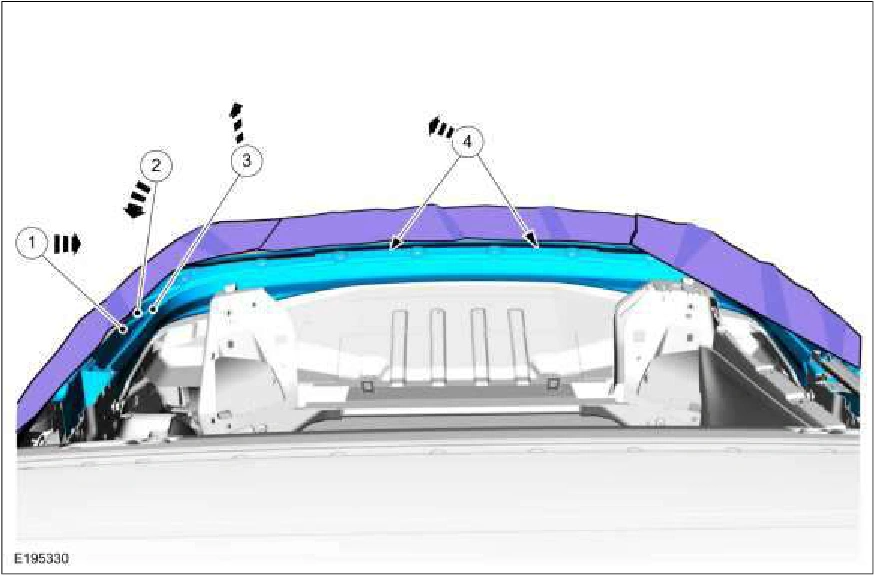

Convertible Top Trough Assembly — original illustration 2, reference 1641Original colors & callouts · Select to enlarge

Source reference 1641
