Convertible Top Tension Cable — 2016 workshop reference 1638

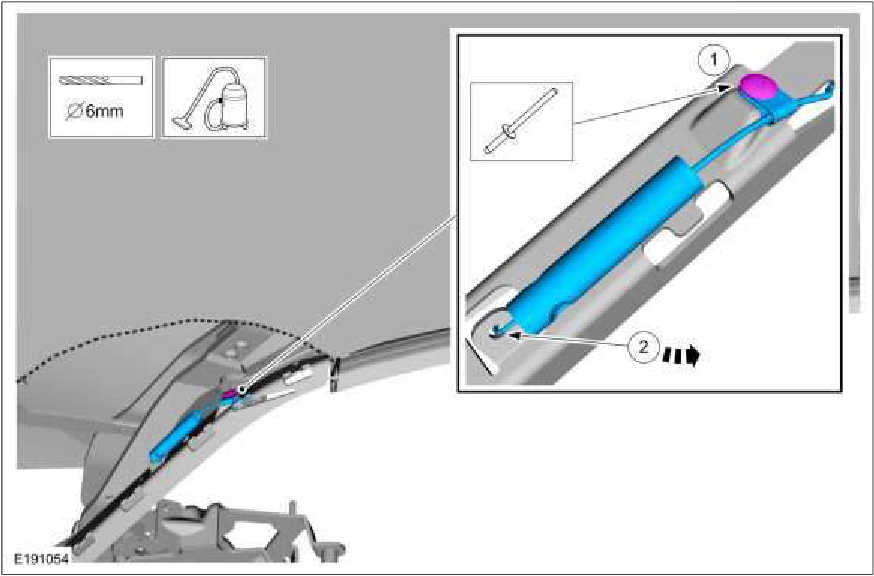

2. Disconnect the spring end of the convertible top tension cable from the frame.

Convertible Top Tension Cable — original illustration 1, reference 1638Original colors & callouts · Select to enlarge

14. NOTE: RH side shown, LH side similar.

Remove the convertible top tension cable.

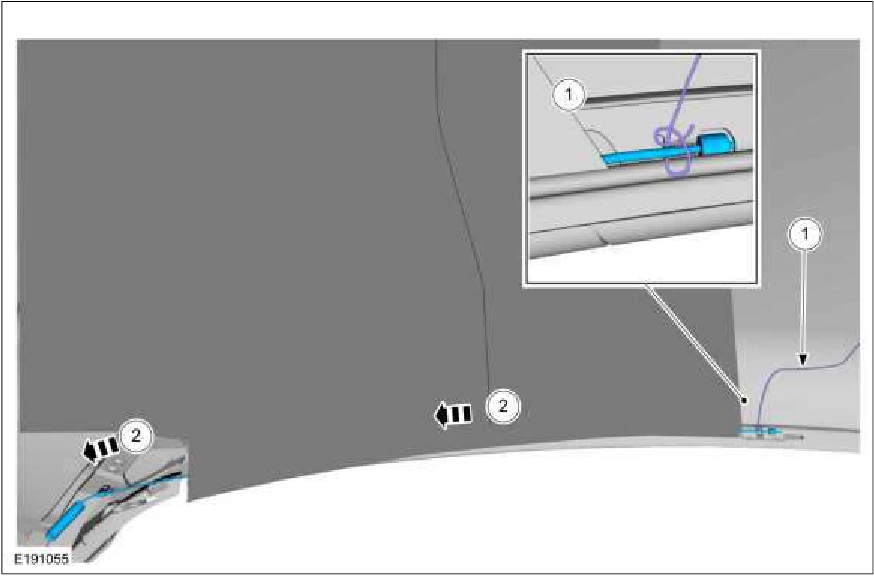

1. NOTE: The draw cord is attached to the wiring harness so the harness can be easily routed through the convertible top material during installation.

Attach a draw cord to the convertible top tension cable. Use the General Equipment: Draw Cord

2. Pull the convertible top tension cable from the convertible top material leaving the draw cord exposed on both sides of the convertible top material for installation.

Convertible Top Tension Cable — original illustration 2, reference 1638Original colors & callouts · Select to enlarge
