Convertible Top Tension Cable

501-18 Convertible Top

2016 MustangConvertibleReference 1,636 / 6,619HTML edition
← Chapter contentsProcedure contents
Convertible Top Tension Cable — original illustration 1, reference 1636Original colors & callouts · Select to enlarge

10. NOTE: RH side shown, LH side similar.

Disconnect the convertible top tension cable from the convertible top front panel.

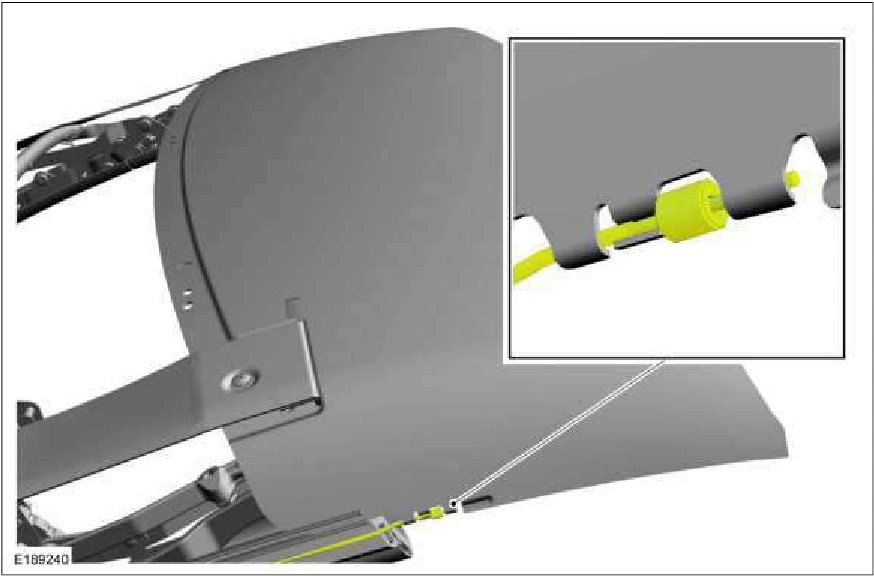

Convertible Top Tension Cable — original illustration 2, reference 1636Original colors & callouts · Select to enlarge

11. NOTE: RH side shown, LH side similar.

Release the convertible top material from the frame under the removed convertible top rear panel lower weatherstrip.

1. Release the convertible top material edge trim from the frame as indicated in all 5 locations under the removed convertible top rear panel lower weatherstrip.

2. Pull the convertible top material out to fully release from the frame.

Source reference 1636
