Convertible Top Tension Cable — 2016 workshop reference 1633

Convertible Top Tension Cable — original illustration 1, reference 1633Original colors & callouts · Select to enlarge

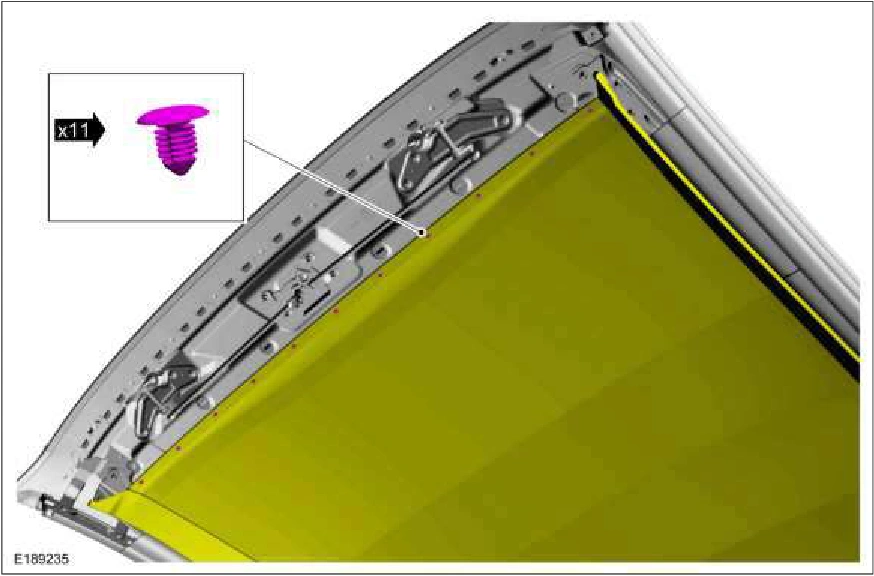

4. Remove the headliner push pin retainers along the back of the convertible top front panel.

Convertible Top Tension Cable — original illustration 2, reference 1633Original colors & callouts · Select to enlarge

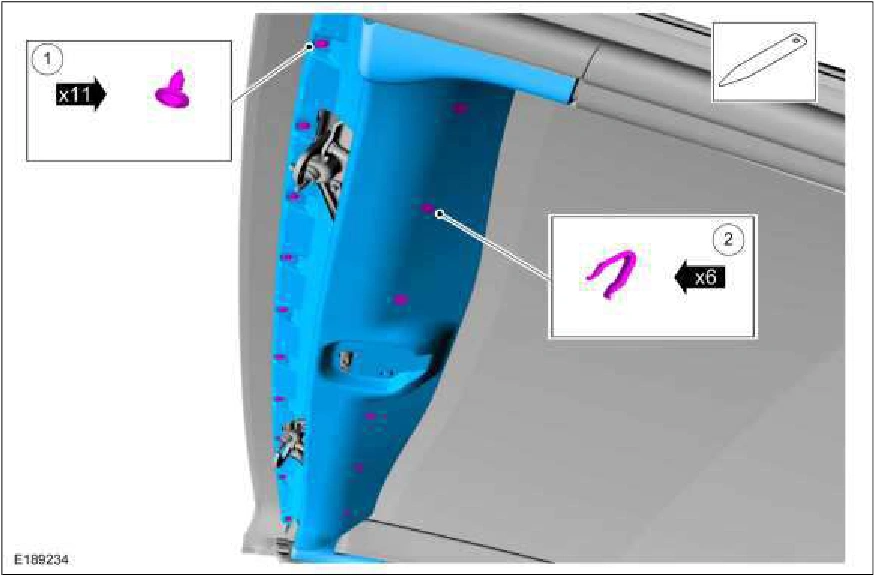

5. NOTE: LH side shown, RH side similar.

On both sides, remove the headliner tension bracket retainers and bracket from the convertible top front panel. Torque : 25 lb.in (2.8 Nm)

Source reference 1633
