Convertible Top Tension Belt
Removal
NOTE: Removal steps in this procedure may contain installation details.
Procedure views are with the convertible top in the fully closed position showing tension on the convertible top material, actual position should be approximately 25-50 percent open allowing slack in the convertible top material and other components for serviceability.
1. Remove the convertible top assembly. Refer to: Convertible Top Assembly (501-18 Convertible Top, Removal and Installation).
2. NOTE: Make sure to remove the convertible top material retaining clips from the floating bow. The convertible top material retaining clips must be placed on the convertible top material in the proper locations when installing.
RH side shown, LH side similar.
Partially disconnect the convertible top material from the floating bow.
3. NOTE: RH side shown, LH side similar.

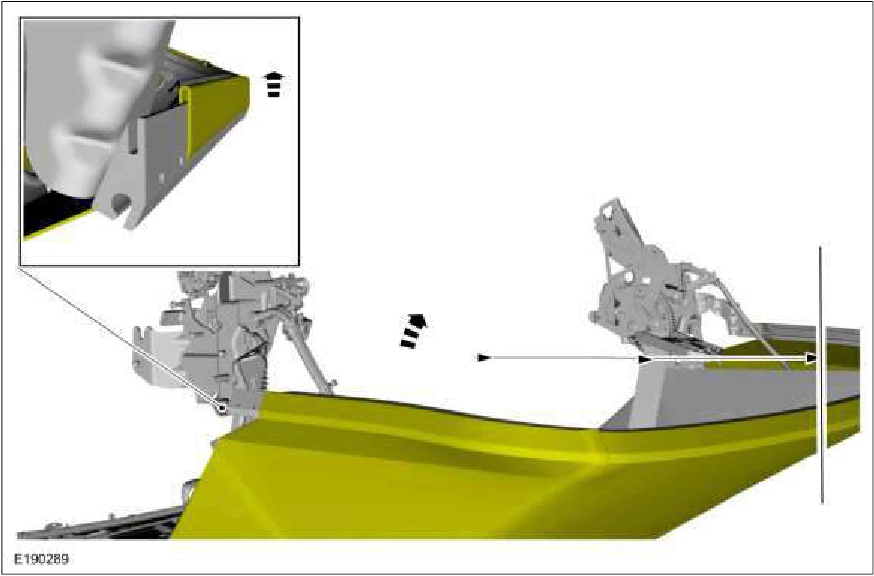

Remove the tension belt.
1. Remove the tension belt retaining screw. Torque : 62 lb.in (7 Nm)
2. Slide the tension belt out of the floating bow.
