Convertible Top Tension Cable — 2016 workshop reference 1637

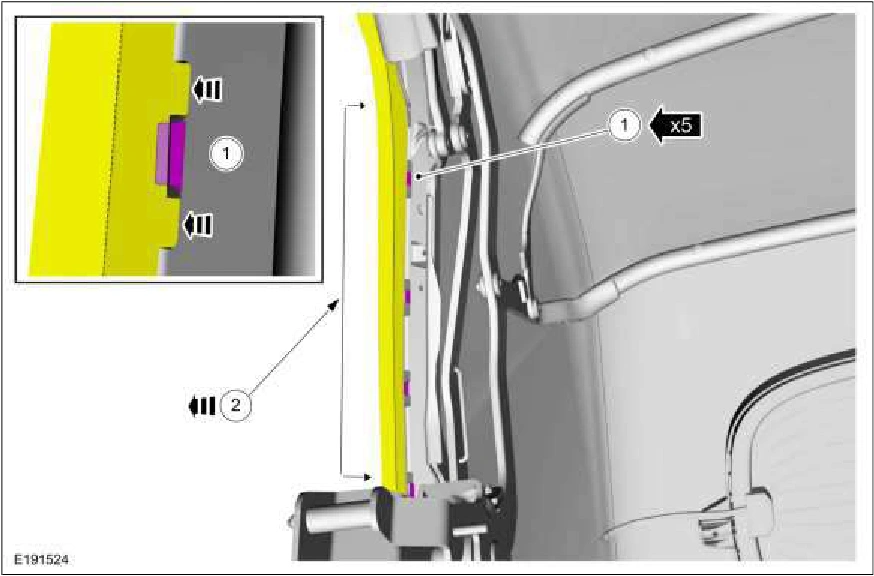

Convertible Top Tension Cable — original illustration 1, reference 1637Original colors & callouts · Select to enlarge

12. NOTE: RH side shown, LH side similar.

Position the convertible top material up in the area shown for access to remove the convertible top tension cable.

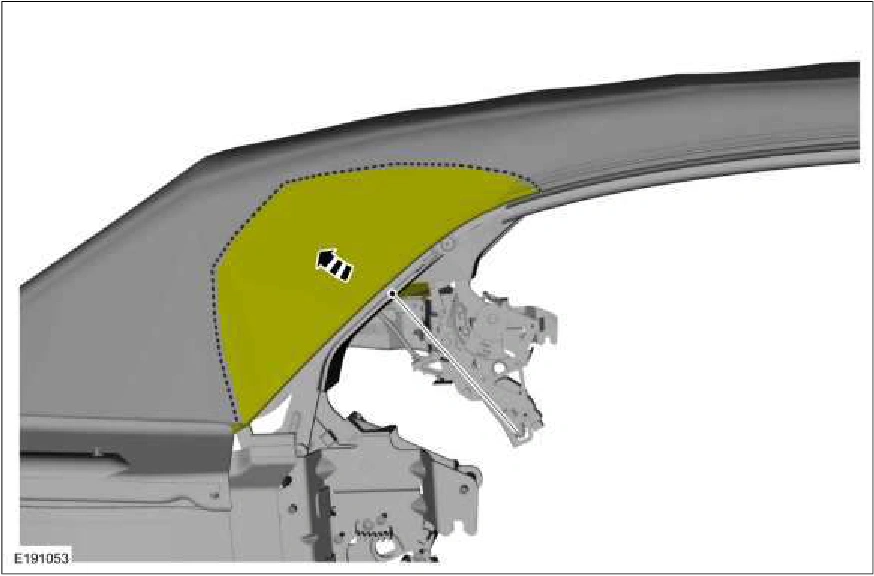

Convertible Top Tension Cable — original illustration 2, reference 1637Original colors & callouts · Select to enlarge

13. NOTE: RH side shown, LH side similar.

Disconnect the convertible top tension cable from the convertible top frame.

1. NOTE: All rivet shavings must be removed from the vehicle and convertible top assembly.

Drill out the convertible top tension cable rivet. Use the General Equipment: Electric Drill Use the General Equipment: Rivet Gun
