6. NOTE: RH side shown, LH side similar.
If any shims are present, note the position for installation.

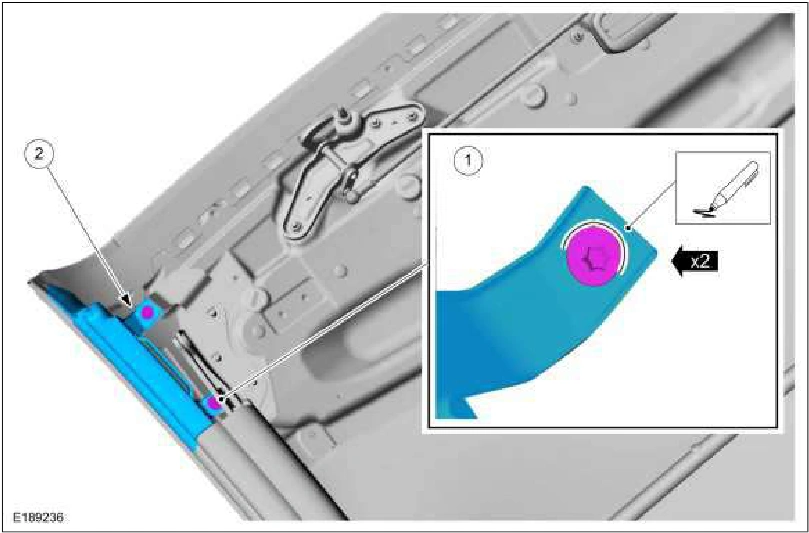

On both sides, remove the convertible top front panel side weatherstrip and bracket assembly.
1. Mark the convertible top front panel side weatherstrip bracket assembly at the retainers for installation reference. Torque : 62 lb.in (7 Nm)
2. Remove the convertible top front panel side weatherstrip and bracket assembly retainers and remove the weatherstrip/bracket assembly.
7. Remove the convertible top material push pins at the back of the convertible top front panel.
