Stay Pad — 2016 workshop reference 1647

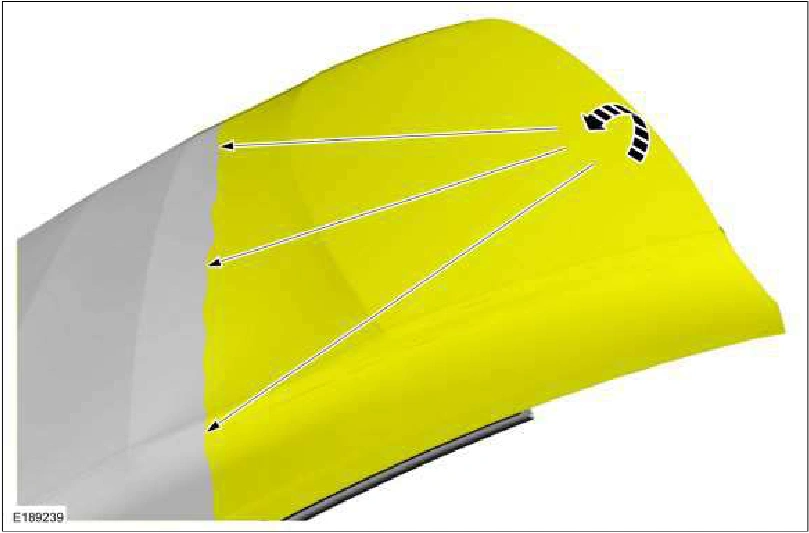

Stay Pad — original illustration 1, reference 1647Original colors & callouts · Select to enlarge

10. NOTE: RH side shown, LH side similar.

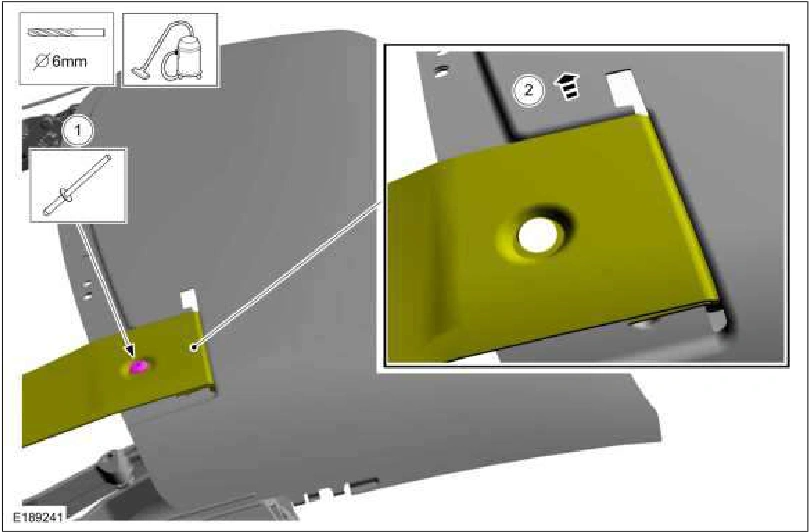

Disconnect the stay pad from the convertible top front panel.

1. NOTE: All rivet shavings must be removed from the vehicle and convertible top assembly.

Drill the stay pad rivets from the convertible top front panel. Use the General Equipment: Electric Drill Use the General Equipment: Rivet Gun

2. Slide the stay pad to the center of the convertible top front panel to disconnect the stay pad.

Stay Pad — original illustration 2, reference 1647Original colors & callouts · Select to enlarge

11. NOTE: Clean all rivet shavings from the vehicle after removing the rivets.

RH side shown, LH side similar.

Remove the stay pad to cross bow rivets.

1. Pull the edge of the headliner inward to access the stay pad rivets.

2. NOTE: All rivet shavings must be removed from the vehicle and convertible top assembly.
