13. NOTE: All rivet, shavings or pieces must be removed from the front and rear cross bows and the vehicle interior. Rivet ends left in any cross bow may result in a rattle condition.
RH side shown, LH side similar.

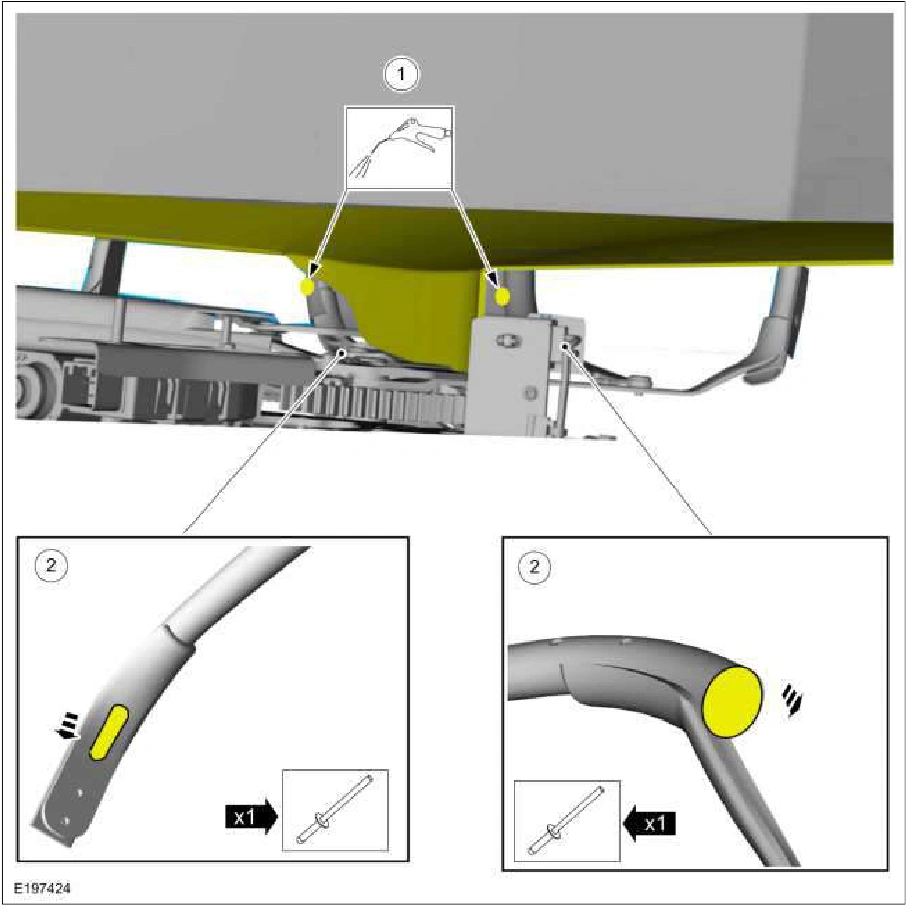

Remove all rivet pieces from inside the front and rear cross bows.
1. NOTE: It may be necessary to force compressed air into multiple rivet holes in the cross bows to get all rivet pieces out of the cross bows.
Using an air nozzle and compressed air, blow into the front and rear cross bows to force the rivet pieces to the outer ends of the cross bows for removal.
2. NOTE: Check both ends of each cross bow to make sure all rivet pieces are removed from the vehicle
At the ends of the cross bows, collect all rivet pieces and verify that all rivet ends are accounted for.
