2016 workshop · Body & Paint

Stay Pad

501-18 Convertible Top

2016 MustangConvertibleReference 1,651 / 6,619HTML edition
← Chapter contentsProcedure contents

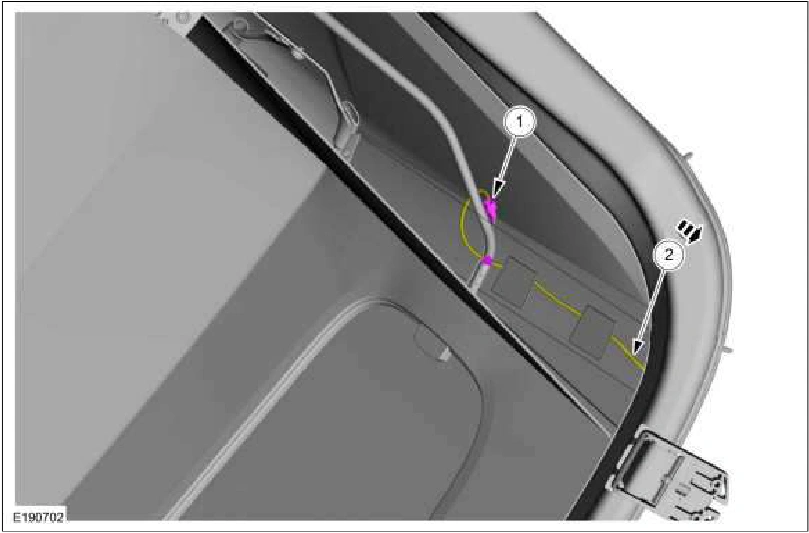

Stay Pad — original illustration 1, reference 1651Original colors & callouts · Select to enlarge

15. NOTE: Make sure to remove the convertible top material retaining clips from the floating bow. The convertible top material retaining clips must be placed on the convertible top material in the proper locations when installing.

RH side shown, LH side similar.

Partially disconnect the convertible top material from the floating bow.

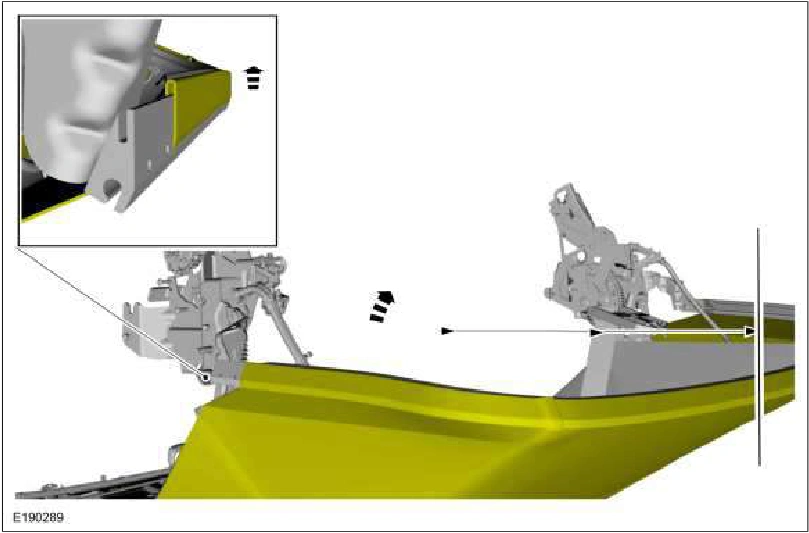

Stay Pad — original illustration 2, reference 1651Original colors & callouts · Select to enlarge

16. NOTE: RH side shown, LH side similar.

Remove the stay pad.

1. Remove the stay pad retaining screw. Torque : 62 lb.in (7 Nm)

2. Slide the tension belt out of the floating bow.
