501-18 Convertible Top 2016 Mustang

Removal and Installation Procedure revision date: 01/13/2015

Tonneau Cover Sensor

Removal

NOTE: Removal steps in this procedure may contain installation details.

The tonneau cover sensor is part of the D-tower cover and must be replaced as an assembly.

1. Remove the load space trim panel as necessary. Refer to: Loadspace Trim Panel - Convertible (501-05 Interior Trim and Ornamentation, Removal and Installation).

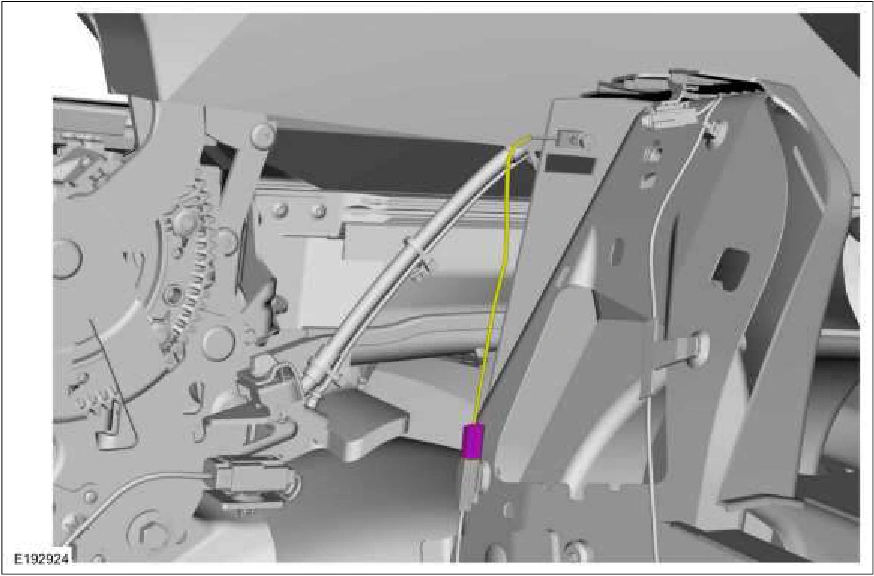

2. NOTE: RH side shown, LH side similar.

Disconnect the harness connector.

Tonneau Cover Sensor — original illustration 1, reference 1653Original colors & callouts · Select to enlarge

3. NOTE: LH side shown, RH side similar.

Remove the necessary D-tower cover.

1. Remove the bumper stop.

2. Remove the 2 pin-type retainers.

3. Release the clip and remove the cover.

Source reference 1653
