Rear Seatbelt Retractor - Convertible — 2016 workshop reference 1740

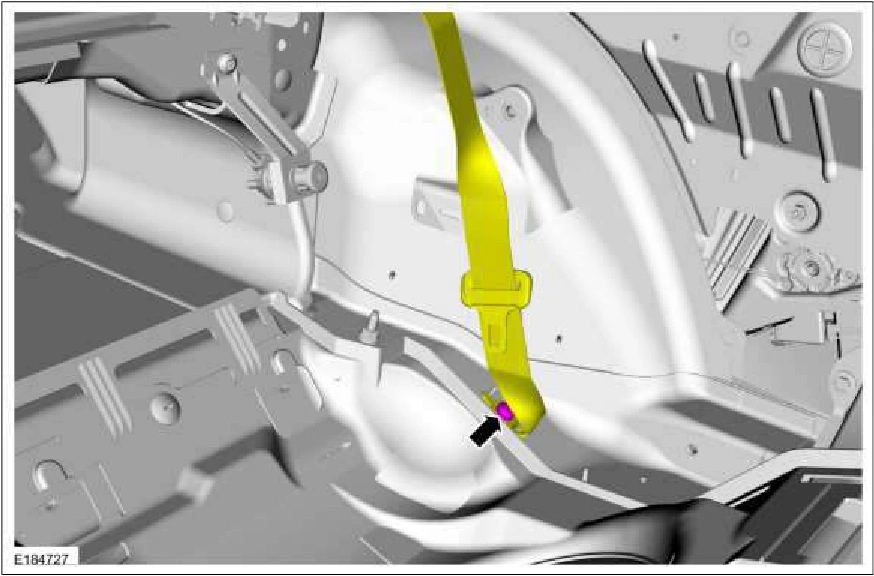

Rear Seatbelt Retractor - Convertible — original illustration 1, reference 1740Original colors & callouts · Select to enlarge

5. Remove the seatbelt retractor.

1. Remove the D-ring bolt. Torque : 30 lb.ft (40 Nm)

2. Remove the seatbelt retractor bolt, position the luggage compartment lid lock cylinder bracket aside (LH side only), and remove the seatbelt retractor. Torque : 30 lb.ft (40 Nm)

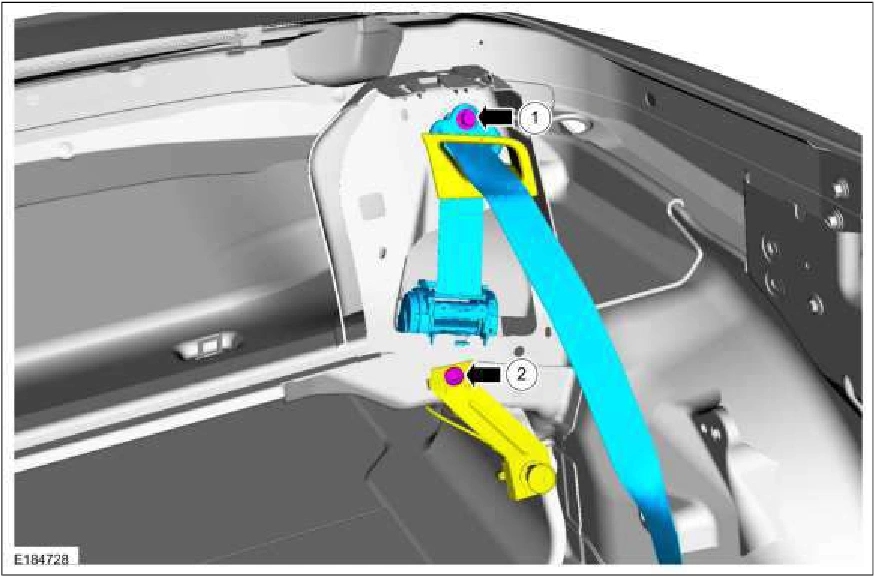

Rear Seatbelt Retractor - Convertible — original illustration 2, reference 1740Original colors & callouts · Select to enlarge

Installation

1. NOTE: During installation, make sure the seatbelt webbing is not twisted and the seatbelts and buckles are accessible to the occupants.

To install, reverse the removal procedure.

Source reference 1740
