501-20A Seatbelt Systems 2016 Mustang

Removal and Installation Procedure revision date: 10/19/2015

Rear Seatbelt Retractor - Convertible

Base Part Number: 611B64

Removal

NOTE: LH shown, RH similar.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the rear seat backrest. Refer to: Rear Seat Backrest - Convertible (501-10B Rear Seats, Removal and Installation).

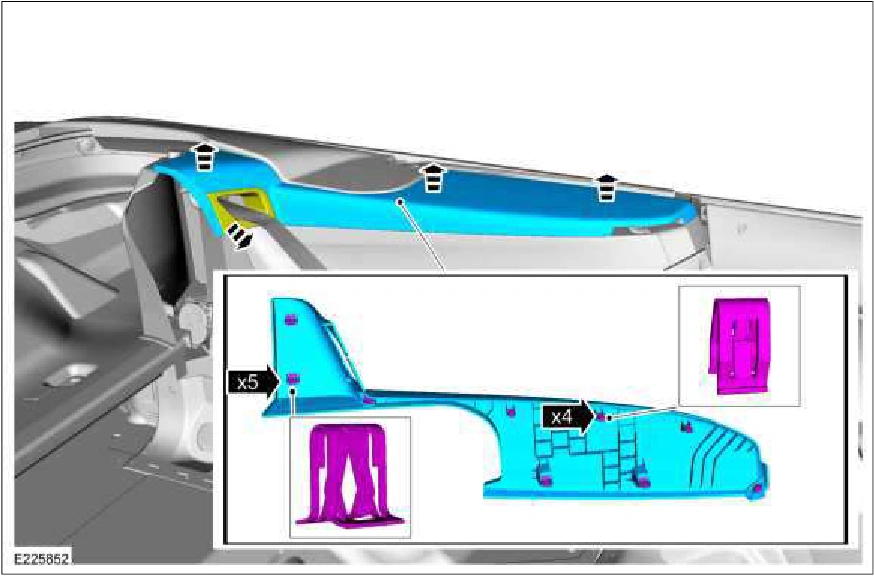

2. Position the seatbelt guide aside, release the clips and remove the upper loadspace trim panel.

Rear Seatbelt Retractor - Convertible — original illustration 1, reference 1738Original colors & callouts · Select to enlarge

3. Remove the middle loadspace trim panel.

1. Release the clips.

2. Pull forward and outward to release the rear tab, position the front and rear safety belts aside and remove the middle loadspace trim panel.
