Rear Seatbelt Buckle

501-20A Seatbelt Systems 2016 Mustang

Removal and Installation Procedure revision date: 04/16/2015

Base Part Number: 60044

Removal

NOTE: RH shown, LH similar.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the rear seat cushion. Refer to: Rear Seat Cushion (501-10B Rear Seats, Removal and Installation).

2. Remove the bolt and the safety belt buckle. Torque : 30 lb.ft (40 Nm)

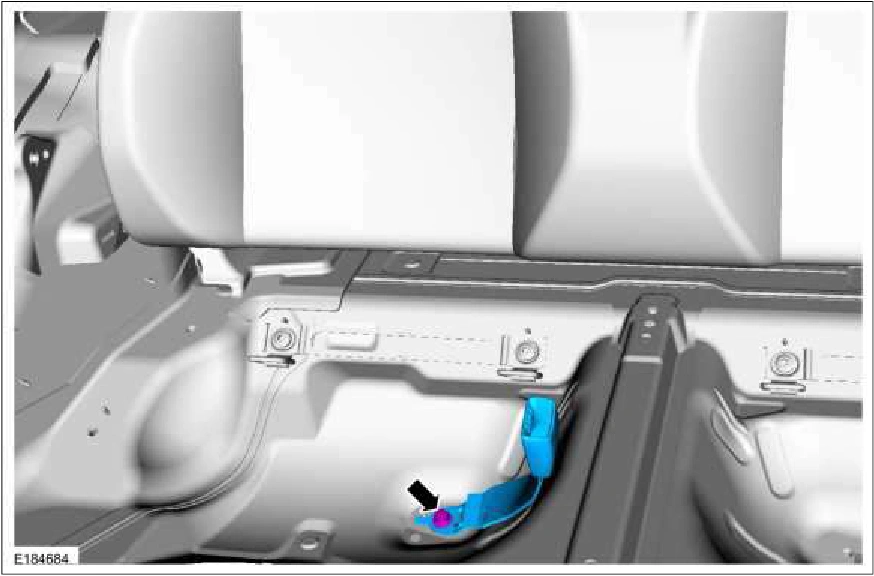

Rear Seatbelt Buckle — original illustration 1, reference 1735Original colors & callouts · Select to enlarge

Installation

1. NOTE: During installation, make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants.

To install, reverse the removal procedure.

2. Check the active restraint system for correct operation. Refer to: Seatbelt Systems (501-20A Seatbelt Systems, Diagnosis and Testing).
