Front Seatbelt Retractor and Pretensioner — 2016 workshop reference 1733

Front Seatbelt Retractor and Pretensioner — original illustration 1, reference 1733Original colors & callouts · Select to enlarge

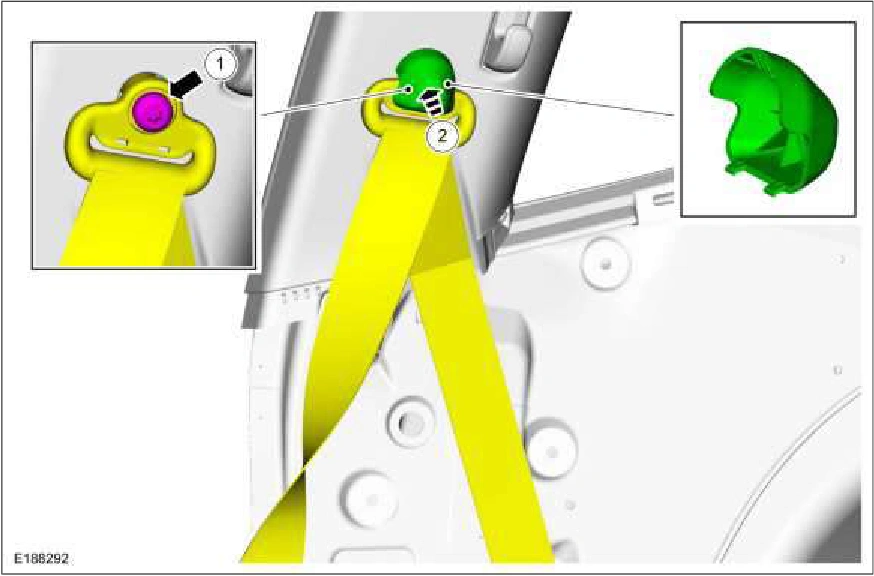

3. Install the D-ring bolt.

1. Position the safety belt and install the D-ring bolt. Torque : 30 lb.ft (40 Nm)

2. Install the D-ring bolt cover.

Front Seatbelt Retractor and Pretensioner — original illustration 2, reference 1733Original colors & callouts · Select to enlarge

4. NOTE: During installation, make sure the safety belt webbing is not twisted between the D-ring and the safety belt retractor and a single 180 degree twist clockwise LH side or counterclockwise RH side.

Rotate the anchor pretensioner clockwise on the LH side, counterclockwise on the RH side, 180 degrees.

Source reference 1733

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
