Front Seatbelt Retractor and Pretensioner — 2016 workshop reference 1730

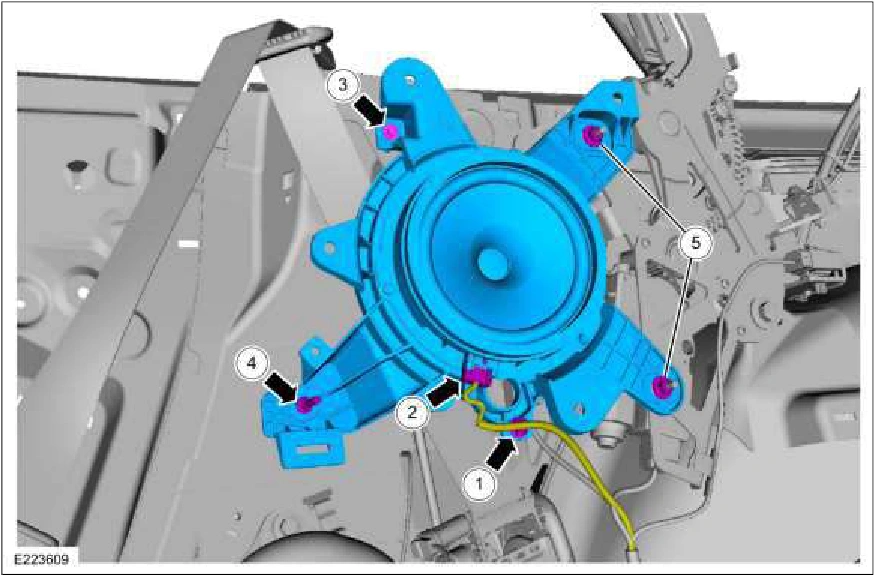

Remove the speaker and bracket assembly.

1. Detach the wire harness retainer.

2. Disconnect the electrical connector.

3. Remove the screw.

4. Remove the stud bolt. Torque : 97 lb.in (11 Nm)

5. Remove the nuts. Torque : 71 lb.in (8 Nm)

Front Seatbelt Retractor and Pretensioner — original illustration 1, reference 1730Original colors & callouts · Select to enlarge

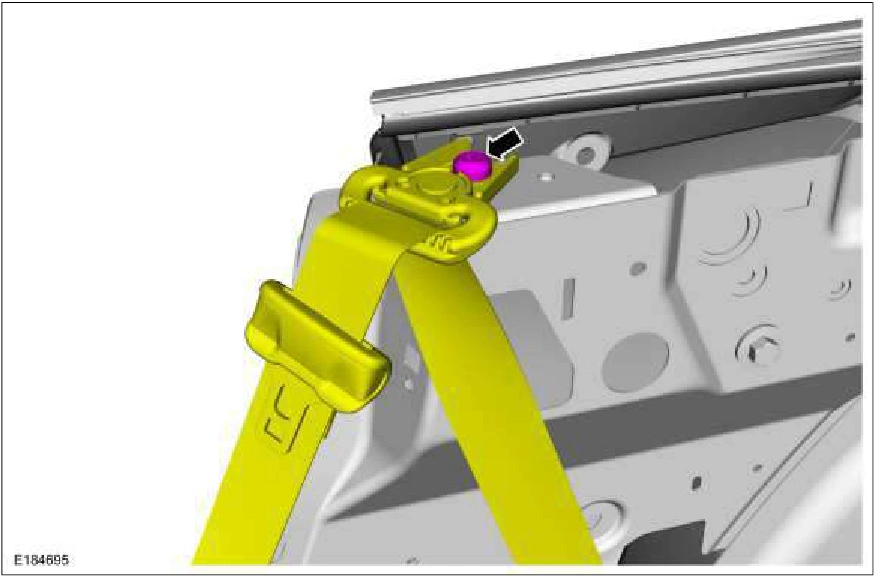

7. Remove the D-ring bolt and position the safety belt aside. Torque : 30 lb.ft (40 Nm)

Front Seatbelt Retractor and Pretensioner — original illustration 2, reference 1730Original colors & callouts · Select to enlarge

8. Disconnect the electrical connector, remove the retainer and the safety belt retractor and pretensioner. Torque : 30 lb.ft (40 Nm)
