Front Seatbelt Retractor and Pretensioner — 2016 workshop reference 1731

Front Seatbelt Retractor and Pretensioner — original illustration 1, reference 1731Original colors & callouts · Select to enlarge

Coupe

9. NOTE: Follow the unique instructions or graphics for this step in the installation.

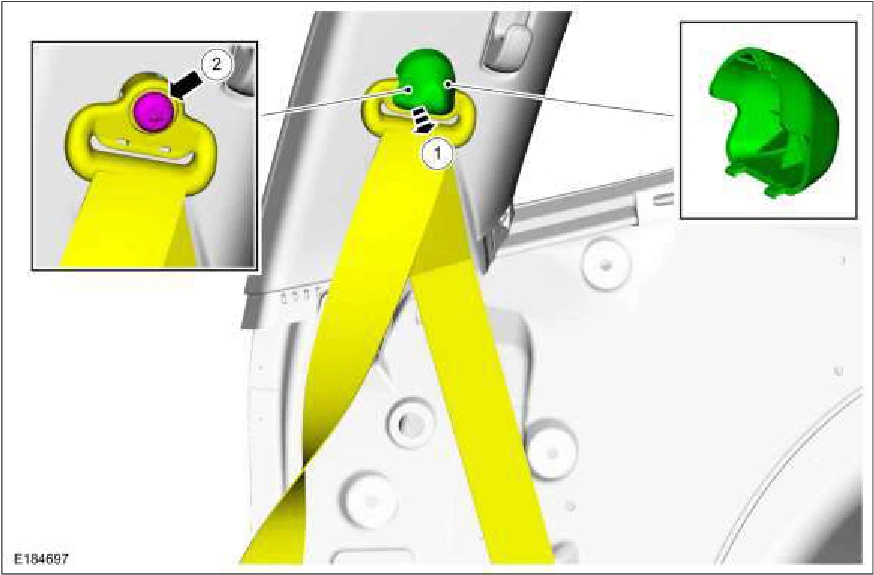

Remove the D-ring bolt.

1. Remove the D-ring bolt cover.

2. Remove the D-ring bolt and position the safety belt aside.

Front Seatbelt Retractor and Pretensioner — original illustration 2, reference 1731Original colors & callouts · Select to enlarge

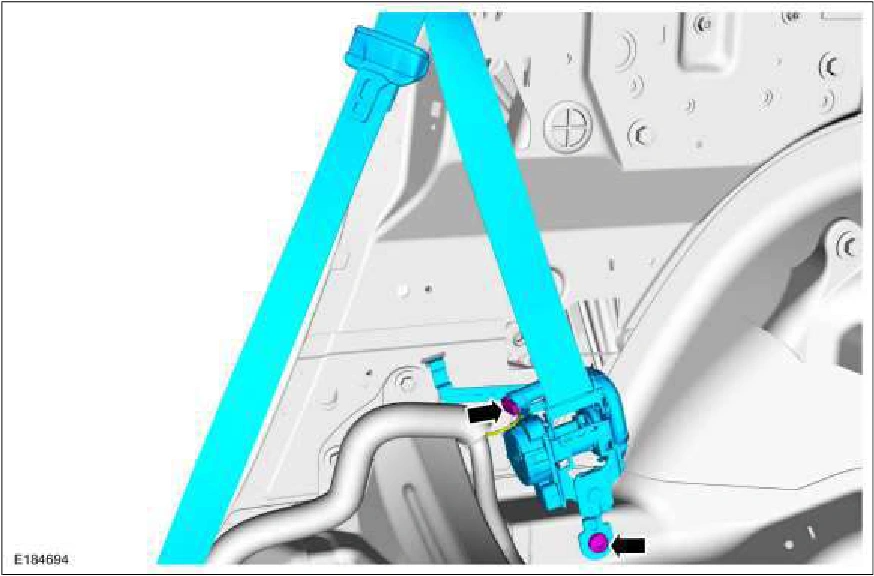

10. Remove the safety belt retractor and pretensioner.

1. Remove the safety belt retractor retainer.

2. Disconnect the electrical connector and remove the safety belt retractor and pretensioner.
