Front Seatbelt Retractor and Pretensioner — 2016 workshop reference 1734

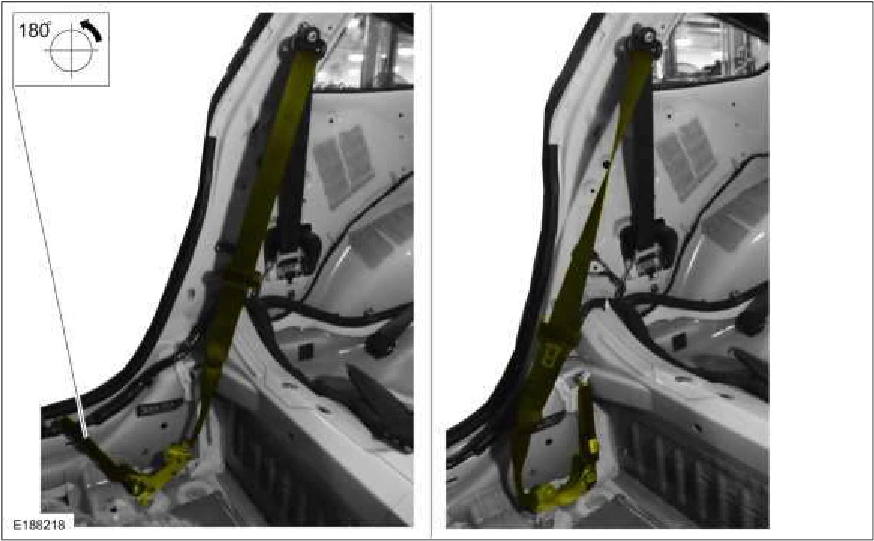

Front Seatbelt Retractor and Pretensioner — original illustration 1, reference 1734Original colors & callouts · Select to enlarge

5. To install, reverse the removal procedure.

All vehicles

6. Repower the SRS. Refer to: Supplemental Restraint System (SRS) Repowering (501-20B Supplemental Restraint System, General Procedures).

7. Check the active restraint system for correct operation. Refer to: Seatbelt Systems (501-20A Seatbelt Systems, Diagnosis and Testing).
