Rear Seatbelt Retractor - Coupe — 2016 workshop reference 1736

501-20A Seatbelt Systems 2016 Mustang

Removal and Installation Procedure revision date: 04/16/2015

Rear Seatbelt Retractor - Coupe

Base Part Number: 611B64

Removal

NOTE: RH shown, LH similar.

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the rear seat cushion. Refer to: Rear Seat Cushion (501-10B Rear Seats, Removal and Installation).

2. Remove the parcel shelf. Refer to: Parcel Shelf - Coupe (501-05 Interior Trim and Ornamentation, Removal and Installation).

3. Remove the retainer and position the safety belt aside. Torque : 30 lb.ft (40 Nm)

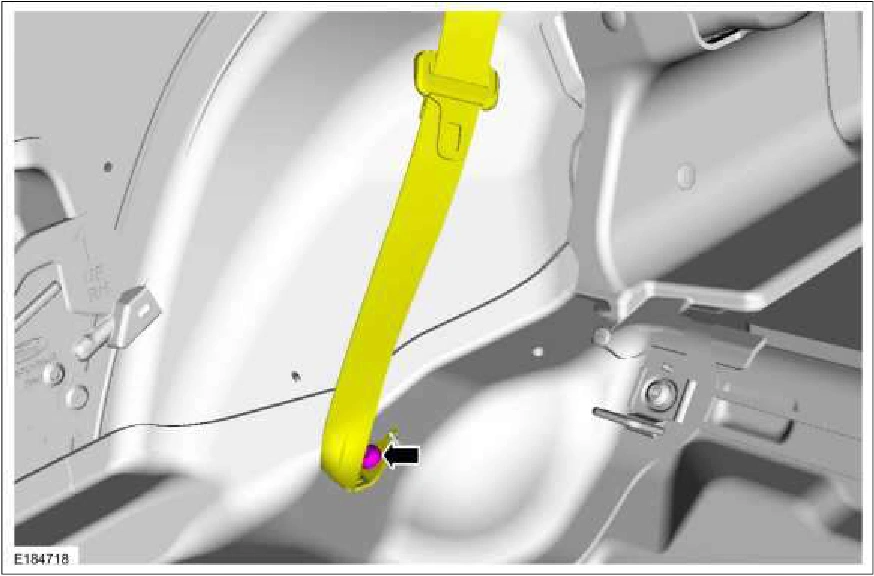

Rear Seatbelt Retractor - Coupe — original illustration 1, reference 1736Original colors & callouts · Select to enlarge

4. Remove the retainers and the safety belt retractor. Torque : 30 lb.ft (40 Nm)

Source reference 1736
